Description

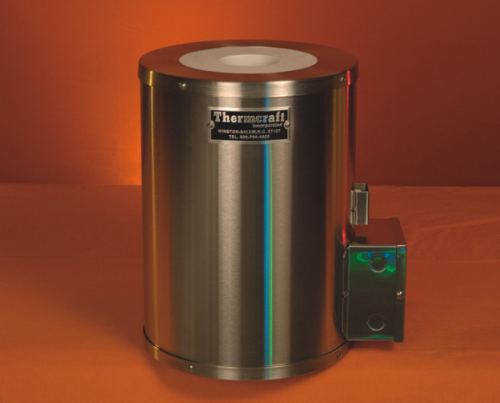

These standard solid tube furnaces come with a heated chamber that is a 3 ID size and available with three different lengths, 12, 18, and 24. Designed for temperatures up to 1200°C (2192°F) that will produce a uniform heat around the full 360° of the heated chamber, the furnace is insulated for maximum thermal efficiency. The eXPRESS-LINE solid tube furnace has a stainless steel shell and the ability to be set-up in a vertical or a horizontal position.
Keep in mind the eXPRESS-LINE Solid Tube furnaces are great for the laboratories of Research and Development departments. And we stock these standard furnaces to ship within two weeks.
- 3 inner diameter heated chamber
- 1200º C (2192º F) maximum operating temperature
- Ceramic refractory heater with embedded resistance wire
- Heated chamber length range of 12, 18 or 24
- Process tube diameter range up to 2 ¾ Diameter
- Can be mounted vertical or horizontal position
- 230 volts electrical requirements
- Comes with a Platinel II thermocouple
- Stainless steel exterior shell
-
10 interconnecting power cable
|
Model number
|
90-8540-12
|
|
Heated chamber size
|
3" ID x 18" long
|
|
Heat zones
|
1
|
|
Heat zone length(s)
|
18"
|
|
Watts
|
3440
|
|
Amps
|
14.9
|
|
Control system
|
1-1-20-230-E15SP
|
|
Exterior size (HxDxW)
|
13"OD x 21"long
|
Additional Models:
|
Catalog Number |
|
90-8540-11
|
3"ID x 12"Long, Single Zone
|
|
90-8540-12
|
3"ID x 18"Long, Single Zone
|
|
90-8540-13
|
3"ID x 24"Long, Single Zone
|
