Description

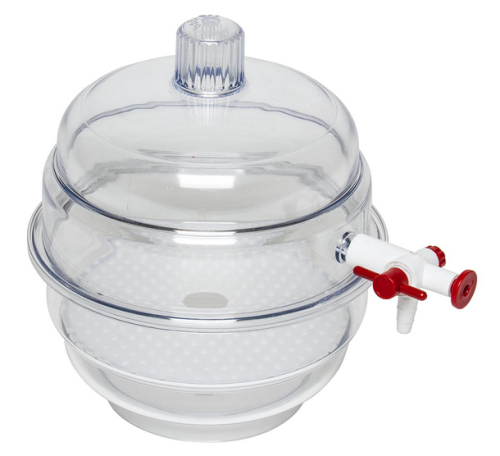

Bel-Art (Trademark) Space-saver Clear Polycarbonate Vacuum Desiccator with Tapered Polypropylene Stopcock with PTFE Plug, 0.09 cu.ft., F42012-0000
Features:
- Suitable for degassing liquids quickly
- Economical, strong, shatterproof clear polycarbonate units provide dry storage and protection for sensitive products; does not chip like glass
- Holds a full vacuum (29.9 Hg) at room temperature for 24 hours
- Stopcock accepts tubing with 1/4 to 3/8 I.D. and allows controlled entrance of air preventing unnecessary turbulence
- Neoprene O-ring assures a tight seal down to 0 degrees C without the need for grease (ring will not be harmed by grease, if used)
- Flat Dome , top with large ribbed knob maximizes interior clearances and provides and average of 13% greater interior volume over standard hemispherical domes
- Includes a 0.32 cm (1/8) thick perforated plate
- Disposable or reusable desiccant can be place on or under the plate
- Clear polycarbonate bottom offers increased visibility from more angles
Specifications:
| Volume | 0.09 cu.ft. |
| Flange O.D. | 17.1 cm (6-3/4) |
| Inside Diameter | 14.9 cm (5-7/8) |
| Plate Diameter | 14 cm (No.3) |
| Overall Height | 20.6 cm (8-1/8) |
| Clearance Above Plate | 12.1 cm (4-3/4) |
Specifications
| Capacity | 0.09 cu. ft. |
|---|---|
| Material | Polycarbonate |
| Dimensions | Outside diameter at flange x overall height: 17.1 x 20.6 cm / 6-3/4 x 8-1/8 in. |
| Manufacturer | SP Bel-Art |
| Model No | F42012-0000 |
