Description

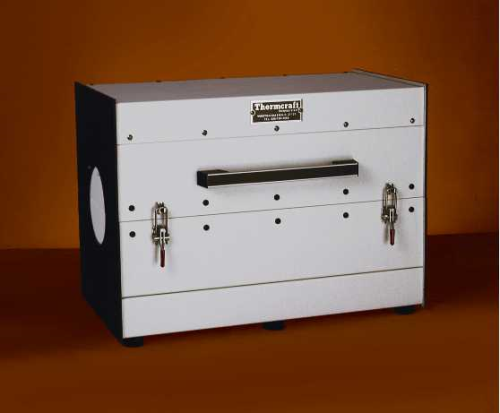

These standard split furnaces come in 3 ID and 6 ID heated chambers and are available in 12, 18, 24 and 36 heated lengths in a single or a three zone configuration. Designed for temperatures up to 1100°C (2012°F) that will produce uniform heat around the full 360° of the heated chamber, the furnace is insulated for maximum thermal efficiency. A new feature of the eXPRESS-LINE furnace is the removable/replaceable vestibules that allow one furnace to be used with multiple diameter process tubes.
Keep in mind the eXPRESS-LINE furnaces are great for the laboratories of Research and Development departments. And we stock these standard furnaces to ship within two weeks.
- 3 inner diameter heated chamber
- 1100º C (2012º F) maximum operating temperature
- Ceramic refractory heater with embedded resistance wire
- Process tube diameter range up to 2-¾" Diameter
- Heated chamber length range of 12, 18, 24 or 36
- Can be mounted vertically or horizontally
- Brackets included for vertical mounting
- 230 volts electrical requirements
- Comes with Platinel II thermocouple(s) one per zone
- 10 interconnecting power cable
-
Removable/customizable vestibule blocks
|
Model number
|
90-8540-20
|
|
Heated chamber size
|
3" ID x 12" long
|
|
Heat zones
|
1
|
|
Heat zone length(s)
|
12"
|
|
Watts
|
1700
|
|
Amps
|
7.4
|
|
Control system
|
1-1-20-230-E15SP
|
|
Exterior size (HxDxW)
|
17.5" x 13.5" x 18"
|
Additional Models:
|
Catalog Number |
|
90-8540-20
|
3"ID x 12"Long, Single Zone
|
|
90-8540-21
|
3"ID x 18"Long, Single Zone
|
|
90-8540-22
|
3"ID x 24"Long, Single Zone
|
|
90-8540-23
|
3"ID x 36"Long, Single Zone
|
|
90-8540-24
|
3"ID x 18"Long, Three Zone
|
|
90-8540-25
|
3"ID x 24"Long, Three Zone
|
|
90-8540-26
|
3"ID x 36"Long, Three Zone
|
|
90-8540-27
|
6"ID x 24"Long, Single Zone
|
|
90-8540-28
|
6"ID x 36"Long, Single Zone
|
| 90-8540-29 |
6"ID x 24"Long, Three Zone
|
|
90-8540-30
|
6"ID x 36"Long, Three Zone
|
