Description

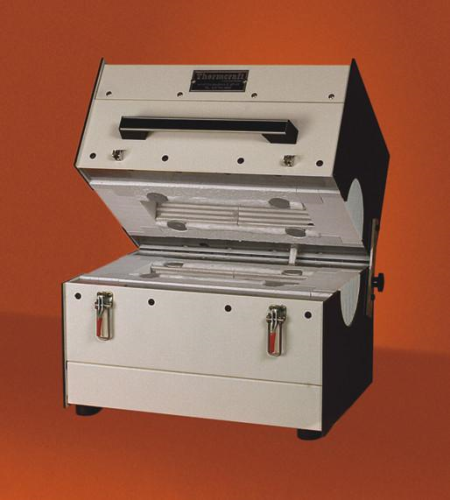

These standard split tube furnaces come in 3 ID and 6 ID heated chambers and are available in 12, 18, 24 and 36 heated lengths, in a single or a three zone configuration. Designed for temperatures up to 1200°C (2192°F) that will produce uniform heat around the full 360° of the heated chamber, the furnace is insulated for maximum thermal efficiency. A new feature of the eXPRESS-LINE tube furnace is the removable/replaceable vestibules that allow one furnace to be used with multiple diameter process tubes.
Keep in mind the eXPRESS-LINE furnaces are great for the laboratories of Research and Development departments. And we stock these standard furnaces to ship within two weeks.
- 6 inner diameter heated chamber
- 1200º C (2200º F) maximum operating temperature
- Ceramic refractory heater with embedded resistance wire
- Process tube diameter range up to 5-½" Diameter
- Heated chamber length range of 24 or 36
- Can be mounted vertically or horizontally
- Brackets included for vertical mounting
- 230 volts electrical requirements
- Comes with Platinel II thermocouple(s) one per zone
- 10 interconnecting power cable
-
Removable/customizable vestibule blocks
|
Model number
|
90-8540-57
|
|
Heated chamber size
|
6" ID x 24" long
|
|
Heat zones
|
1
|
|
Heat zone length(s)
|
24"
|
|
Watts
|
9200
|
|
Amps
|
40
|
|
Control system
|
1-1-40-230-E15SP
|
|
Exterior size (HxDxW)
|
23" x 17" x 30"
|
Additional Models:
|
Catalog Number |
|
90-8540-50
|
3"ID x 12"Long, Single Zone
|
|
90-8540-51
|
3"ID x 18"Long, Single Zone
|
|
90-8540-52
|
3"ID x 24"Long, Single Zone
|
|
90-8540-53
|
3"ID x 36"Long, Single Zone
|
|
90-8540-54
|
3"ID x 18"Long, Three Zone
|
|
90-8540-55
|
3"ID x 24"Long, Three Zone
|
|
90-8540-56
|
3"ID x 36"Long, Three Zone
|
|
90-8540-57
|
6"ID x 24"Long, Single Zone
|
|
90-8540-58
|
6"ID x 36"Long, Single Zone
|
| 90-8540-59 |
6"ID x 24"Long, Three Zone
|
|
90-8540-60
|
6"ID x 36"Long, Three Zone
|
