Description

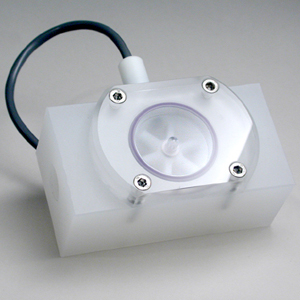

Global Water® SPX-050 Inline Low Flow Meter, 1/2 inch, For Small Diameter Pipes, BT0050Features:
- Accurate at lower flow rates
- Body made from polypropylene with an acrylic lens — resistant to many low-corrosive, mild chemical solutions but not for stronger chemicals
- Employs ruby bearings and nickel tungsten carbide shafts to allow measurement of very low minimum flows and provide superior wear characteristics
- 6-24 VDC pulse output — compatible with most PLCs, counters, and a full range of rate displays and controllers
- Transparent housing for sight flow inspection
- Replaceable non-wtted solid-state pickup
- Available in standard pipe thread sizes from 3/8" to 1" NPT
- Recommended for straight pipe run of a least 5 diameters (10 diameters) upstream of the meter
- Vertical and horizontal installation acceptable
| Accuracy | ± 1% Full Scale | |
| Flow Rates | 3/8" — BT0038 | 0.07 to 5 GPM |
| 1/2" — BT0050 | 0.1 to 10 GPM | |
| 3/4" — BT0075 | 0.2 to 20 GPM | |
| 1 " — BT0100 | 0.5 to 40 GPM | |
| Materials | Body | Polypropyle |
| Cover | Acrylic | |
| Rotor | PVDF | |
| Shaft | Nickel Tungsten Carbide | |
| Bearings | Ruby | |
| Maximum Pressure | 150 psi (10 bar) | |
| Maximum Temperature | 160 °F (70 °C) | |
| Power | 6-24 VDC, 2 mA minimum | |
| Sensor Cable | 18' AWG 22 3-conductor | |
| Maximum Cable Run | 2000 ft (650 m) | |
| Weight | 2.5 lbs. ( 1.13 Kg) | |
| Size, L x W x H | 4.1 x 2.2 x 2.1 in. (10.5 x 5.5 x 5 cm) | |
Specifications
| Manufacturer | Global Water |
|---|---|
| Model No | BT0050 |
