Description

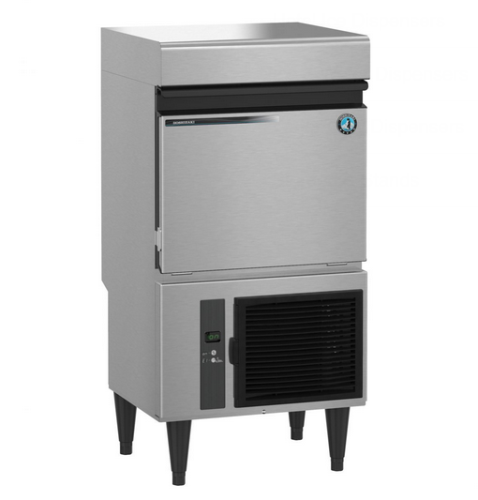

Square Cuber Icemaker, Air-cooled, Built in Storage Bin, 2 in. Cubes, IM50BAALM
Features:
- Produces individual clear, solid 1.9″ x 1.9″ x 2.3″ cubes
- Durable stainless steel exterior
- Front in, front out airflow
- Ice scoop included
- Foam injected polyurethane for insulation (HFC free)
- Small footprint can easily fit under a bar counter
- R-134a refrigerant (6.0 oz. / 170 g)
- Heat Rejection:1500 BTU/hr
- Ambient temperature range: 45 – 100 °F
- Water temperature range: 45 – 90 °F
- Water pressure: 10 – 113 psig
- Voltage range: 104 – 127V
- 15.7 kwh/100 lbs.@ 90/70
- Clean ice and easy maintenance lead to longer unit life span
Specifications:
| Condenser | Air |
| Model | IM-50BAA-LM |
| Air/Water Temperature for Yield in lbs/24 hours | 70 degrees/50 degrees F — 50 lbs/24 hrs; 90 degrees/70 degrees F — 45 lbs/24 hrs |
| Potable Water Usage | 22 gal/24 hrs @ 90 degrees/70 degrees F |
| Power Usage | 15.7 kWh /er 100 lbs @ 90 degrees/70 degrees F |
| Maximum Fuse Size or HACR Circuit Breaker | 15 A |
| Refrigerant / Charge Amount | R134a / 6.0 oz |
Specifications
| Capacity | 50 lbs/24 hours, 22 lb storage |
|---|---|
| Material | Durable stainless steel exterior |
| Power | 115 V/60 Hz / Single Phase, 5.0 A, 6.5 ft. cord with NEMA 5-15 plug |
| Dimensions | 19-3/4 in. W x 17-3/4 in. D x 39- 1/2 in. H |
| Weight | Net: 115 lbs, Shipping: 137 lbs |
| Model No | IM50BAALM |
| Warranty | Three Years: Parts & Labor warranty - entire machine, Five Years: Parts warranty on Compressor and condenser coil |
