Description

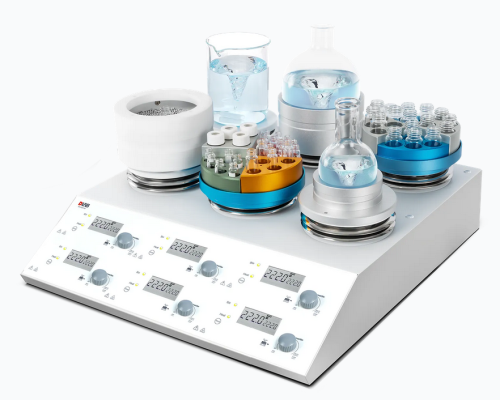

DLab Scientific® Stirrer/Hot Plate, 6 Position Independent Channels, LCD Digital, DLab Scientific, MS-H280-S6
Features:
- Offers enhanced parallel experiment control with 6 independently controlled channels, each featuring individual start/stop, temperature, speed, and display settings
- Ceramic-coated aluminum work plate ensures rapid heat transmission and strong corrosion resistance, complemented by powerful, rapid heating with accurate PID temperature contro
- Spark-free DC brushless motor provides extended life and requires no maintenance
- Stirrer is compatible with various heating blocks or reaction vessels, expanding its application versatility
- Ultra space-saving design integrates 6 channels into single instrument
- Safety features include 'HOT' warning that flashes on
- LCD when the work plate exceeds 50 degrees C after power-off, and two independent safety circuits that monitor instrument which trigger heating cessation and an audible alarm upon overheating or sensor malfunction, and cut off power in event of short circuit
- Device boasts reliable safety mechanism compliant with safety regulations for laboratory heating devices, enabling unsupervised operation
Specifications
| Range | Speed: 200-1500 rpm +/- 20 rpm |
|---|---|
| Range | Temperature: 25-280 degrees C +/- 1 degree C <100 degrees C, +/-1% >100 degrees C |
| Range | Maximum Volume (of Water)/channel: 3 L |
| Range | Maximum Magnetic Bar Length: 40 mm |
| Material | Ceramic coated aluminum work surface |
| Power | 100-120 V,60 Hz; or 200-240 V, 50 Hz, 605 x 6 Watts |
| Compliant/Standard | IEC61010-1\UL61010-1\BSEN61010-1\CAN\CSA-C22.2NO.61010-1, IP-21 Drip Protection |
| Operating Environment | Temperature: 5 to 40 degrees C, Relative Humidity: 80% |
| Other | Work plate diameter: 134 mm |
| Dimensions | W x D x H: 564 x 523 x 127 mm |
| Weight | 12.7 kg |
| Manufacturer | DLab Scientific |
| Model No | MS-H280-S6 |
