Description

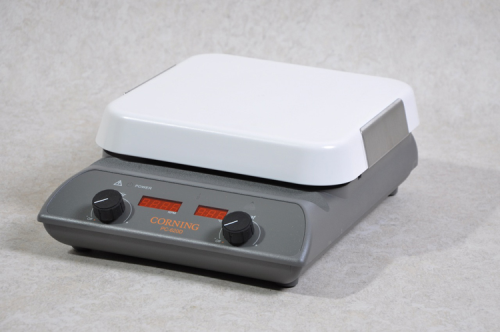

Corning® 10 x 10 Inch Top PC-620D Stirring Hot Plate with Digital Displays, 6795-620D
Features:
- Stirring hot plate Model PC-620D has a 10 x 10 in. (25.4 x 25.4 cm) Pyroceram Glass-Ceramic top and digital temperature and stirring speed displays
- It is designed to operate on 120 V/60 Hz with standard US three-prong plug
- Microprocessor maintains consistent and repeatable temperature settings from 5 °C (if ambient temperature is 0 °C or lower) up to 550 °C.
- Digital LED temperature display is adjustable in 5°C increments and blinks until set temperature is reached.
- Optional external temperature controller controls temperature inside the vessel and eliminates the need to closely monitor liquid temperature.
- Hot plate is UL and cUL approved
- Bright LED HOT TOP icon lights when top plate is over 60°C
- Two piece casting design deflects spills away from electronics
- Built-in mount for optional 18 (45.7 cm) support rod
- Comes with a 2 year warranty
Specifications:
| Number of stirring positions | 1 |
| Top size | 4.62 x 11 x 15.37 in. (11.75 x 27.94 x 39.05 cm) |
| Top material | Pyroceram glass-ceramic |
| Stir range | 60 to 1150 RPM |
| Temperature range | 5 to 550 °C (41 to 1022 °F) |
| Weight | 5.2 kg |
| Power | 120V 60Hz |
| Amperage | 9.3 |
| Watts | 1113 |
| Dimensions | 15-3/4 x 10.5 x 4-3/4 in. (40.1 x 26.9 x 12.2 cm) |
Other Sizes and Configurations:
| 90-9365-11 | PC-400D | 5 x 7 | Digital Hot Plate |
| 90-9365-12 | PC-600D | 10 x 10 | Digital Hot Plate |
| 92-1422-11 | PC-410D | 5 x 7 | Digital Stirrer |
| 92-1422-13 | PC-610D | 10 x 10 | Digital Stirrer |
| 92-1423-01 | PC-420D | 5 x 7 | Digital Hot Plate / Stirrer |
| 92-1423-13 | PC-620D | 10 x 10 | Digital Hot Plate / Stirrer |
