Description

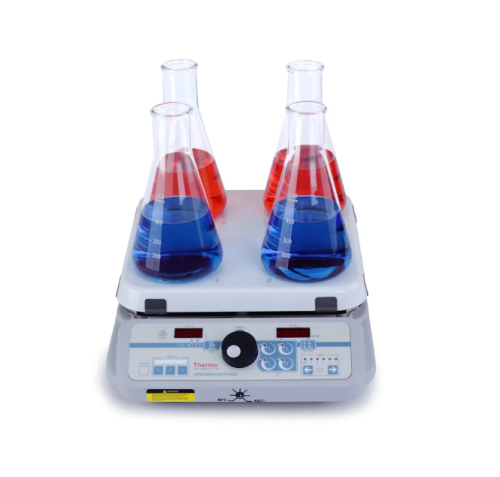

Thermo Scientific™ Super-Nuova™ Multi-Position Digital Stirring Hotplate, 10.25 in x 10.25 in. Thermo Scientific, SP135935Q
Features:
- Exceptional flexibility with four-position independently controlled stirring capability on one heated ceramic top
- Ideal for labs that require high-volume processing or with multiple users
- Low-temperature adjustment suitable for life science and biotechnology applications
- Microprocessor control ensures accurate and stable setpoints for temperature and stirring speed
- Electronic feedback controls monitor either top plate surface or liquid temperature (when using external PTFE-coated probe, included) and adjust to setpoint
- Single control knob controls heat and speed; lock feature prevents accidental changes
- Digital display for temperature or rpm
- Powerful motor and magnetic system prevent magnetic decoupling
- StirTrac breaking feature brings stir bar to an immediate stop for quick false removal and prevents runaway or decoupled stir bars
- Temperature adjusts in 1° increments
- Four user-defined temperature/speed memory keys recall settings
- Calibration mode allows the remote probe to be calibrated to external standards; the probe can be programmed as a system (probe, control, display) at any user-selected temperature
- Ceramic tops clean easily, resist chemicals and provide fast boiling time
- RS-232 port allows output of time count, temperature setpoint, top surface/remote probe temperature, stirring setpoint, and actual speed
- Red HOT TOP warning light activates when the heating surface is above 50 °C unit flashes HOT OFF until the surface temperature falls to 50 °C or below, even when heat control is turned off
- Adjustable overprotection circuit limits top plate temperature and prevents runaway conditions
- Rugged low-profile cast aluminum body provides stability and durability
- Unit design protects internal components from accidental spills
- Walk-away timer shuts off heating, stirring, or both after preset user-defined interval
Included:
- Detachable line cord and plug
- 6 in. Type K probe
- Stirring models also include stir bar
Specifications:
| Description | 35 lb. load capacity |
| Includes | 6 in. Type K Probe, Detachable Line Cord and Plug, Stir Bar |
| Controller Type | Digital |
| Type | Hot Plate Stirrer, Stirrer |
| Shape | Square |
| Max. Sample Load | 16 kg |
| No. of Positions | Multiple |
| Display | Digital |
Specifications
| Range | Stirring: 50 to 1200 rpm |
|---|---|
| Range | Temperature: Ambient +1°C to 370°C |
| Material | Ceramic top plate |
| Power | 120 V 50/60 Hz, 11.8 A, 1400 W |
| Application | Life science. biotechnology and general laboratory |
| Compliant/Standard | cCSAus, Certificate of Analysis (COA), Certificate of Conformance (COC) |
| Operating Environment | 0 ° to 27 °C, 80% relative humidity, noncondensing |
| Connectivity | RS-232 |
| Dimensions | Plate: 10.25 in. x 10.25 in. Overall, L x W x H: 16.2 in x 11.3 in. 4 in. (41.1 cm x 28.7 cm x 10.2 cm) |
| Weight | 20.5 lb. (9.3 kg) Shipping |
| Manufacturer | Thermo Scientific Nova |
| Model No | SP135935Q |
| Warranty | 2 year warranty |
