Description

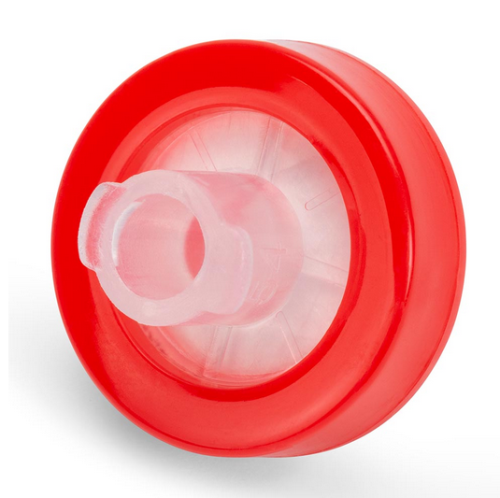

Globe Scientific® Syringe Filter, Polytetrafluoroethylene (PTFE) Hydrophilic Membrane, 0.22 Micrometers Porosity, 13 mm Diameter, Polypropylene (PP) Housing, STERILE, Individually Wrapped, 1000/CS, SF-PTFE-2213-S
Features:
- Individually packaged in peelable blister with filter diameter, membrande type, and membrane porosity clearly marked on the package
- Sterilized by Gamme Irradiation to SAL 10-6
- RNase & Dnase free
- Polypropylene microfiber pre-filter layer to improve filtration of particulate-laden fluids — increases flow rate
- High flow rates and low absorption membranes for minimal sample loss
- Color coded outer ring allows easy identification of membrane and filter media type
- Each unit is clearly marked with an identifying code to denote pore size and membrane material
- Bonded outer ring on housing provides strength under higher working pressures for high performance needs
- Manufacturing process certified to ISO 9001 standards
- "Universal" membrane - Ideal for both aqueous and organic samples
- Strong chemical stability and inertia
- Strong acid and alkali solvent filtration
- Chemically resistant to all solvents
- pH Range: 1-14
Specifications:
| Diameter | 13mm | 30mm |
| Housing Material | PP | PP |
| Filtration Area (cm²) | 0.092 | 4.9 |
| Holdup Volume (μl) | <10 | <120 |
| Volume Throughput (ml) | 10 | 100 |
| Connections (Inlet/Outlet) | Female Luer Lock Inlet / Male Luer Slip Outlet | Female Luer Lock Inlet / Male Luer Slip Outlet |
| Max Operating Pressure (psi) | 87 | 87 |
| Max Operating Temperature (°C) | 100 | 100 |
| Prefilter | PP | PP |
Specifications
| Material | Polytetrafluoroethylene (PTFE) membrane/polypropylene (PP) housing |
|---|---|
| Other | 22 micrometers porosity |
| Dimensions | 13 mm Diameter |
| Manufacturer | Globe Scientific |
| Model No | SF-PTFE-2213-S |
