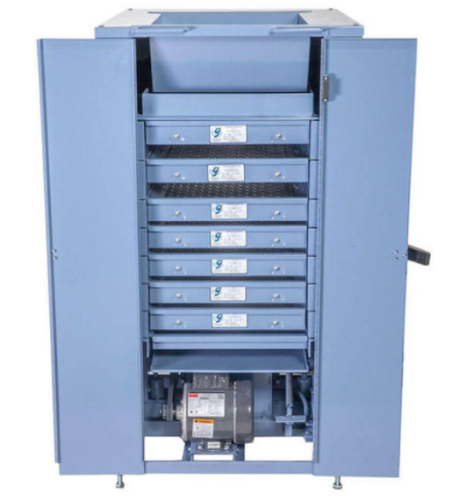

Test Master Testing Screen, 7-Tray Capacity, 115V, 60Hz, Gilson, TM-6

Gilson® Test Master® Testing Screen, 7-Tray Capacity, 115V, 60Hz, TM-6

Features:

• Accommodates up to seven screen trays plus one pan slot
• Delivers accurate particle size separations for large samples and is ideal for coal, coke, ore, and many other dry, granular materials
• Standard vibration characteristics are designed for coarse materials of mid-range density, such as limestone or gravel aggregates
• Counter-balanced drive assembly with internal rotating counterweights to equalize vertical screening action and assure smooth, quiet operation
• Place anywhere because of counterbalanced drive — no need for permanent bolting to floor
• Sample vibration characteristics are identical to TS-1 and TS-2 Gilson Testing Screens
• Fully enclosed design ensures safer operation and helps confine and control airborne respirable quartz, silica, or crystalline particles in breathing zone of personnel
• Hopper has 1.6 ft³ (45.3 L) sample volume and is hinged at rear to allow sample addition incrementally as machine is running — evenly distributes sample
• Panel blocks dust from escaping through opening when hopper is closed
• Narrower panel doors require less space to open and fold flat across front of unit
• Vertically hinged front panel doors offer improved access and clearance and can be placed anywhere in lab with no need for permanent installation
• Doors also have safety interlock switch that disables the Test-Master® when open
• Built-in electronic digital controller has LED display of time remaining and produces audible tone at end of test cycle
• Test cycles lasting up to 99 minutes and 59 seconds can be programmed, and cycles may be interrupted without loss of test time
• Integral, digital timer enables repeatable tests
• Operates with powerful, capacitor-start 1/3 hp motor
• Ergonomic foot pedal easily operates hydraulic clamping and pressure release system for screen trays
• Removable, independent screen trays are shared by both Testing Screen and Test-Master® models and are available in a wide range of opening sizes with ASTM E11, ISO 565 specification cloth, or ASTM E323/D4749 punched steel plate.
• Screen cloth is replaceable, ensuring long life and inexpensive maintenance of trays
