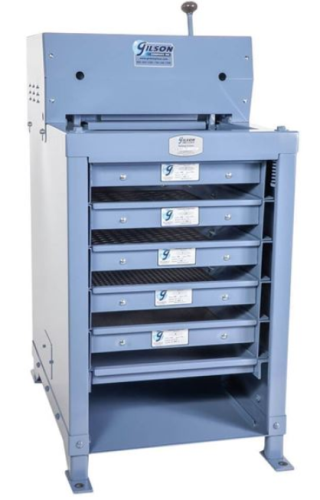

Test Screen System Model TS-2 without Tray, 115 V/60 HZ, Gilson
Roll over image to zoom in Click on image to zoom
Test Screen System Model TS-2 without Tray, 115 V/60 HZ, Gilson

Test Screen System Model TS-2 without Tray, 115 V/60 HZ, Gilson

Item: 91-8990-01-EA
Request a Quote

Description

Gilson® Test Screen System Model TS-2 without Tray, 115V/60HZ

Features:

  • Ideal for particle size determinations on large samples of aggregate, slag, ores, and other coarse materials
  • Batch sizes up to one cubic foot (0.028m3) or more can be processed into six fractions in as little as six to ten minutes, depending on the material type
  • Drive mechanism is completely enclosed for added safety, and powerful 1/2 hp capacitor-type motor is operated with starting switch with built-in overload protection
  • Independently removable Screen Trays and Dustpans are purchased separately and shared by both Testing Screen and Test-Master® models
  • Trays have replaceable Screen Cloth and are available in a wide range of opening sizes with ASTM E11 and ISO 565 specification cloth or punched steel plate
  • Gilson Testing Screens are designed to be mounted to solid, rigid floor system — securing with anchor bolts to concrete floor is recommended

Specifications:

Particle Size Range 4 in –No. 4 (101–4.75 mm)
Screen Tray Capacity TS-1 & TS-2 Models: 5 tray slots plus 1 for pan
Maximum Sample Volume 1ft3 (28.3 L)
Motion/Agitation Vertical Vibration
Mounting Capability Yes, must be bolted to floor
Electrical 115 V / 60 Hz, 9.2 amps
Product Dimensions TS-1 & TS-2: 23 x 31 x 43 in (584 x 787 x 1,092 mm), W x D x H

Specifications

Power 115 V / 60 Hz, 9.2 amps
Dimensions W x D x H: 23 x 31 x 43 in. / 584 x 787 x 1,092 mm
Manufacturer Gilson Company
Model No TS-2
