Description

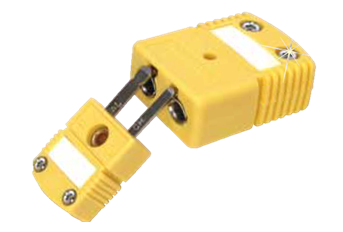

Omega® Thermocouple Connector Kit, Male/Female, -29 to 180 degrees C, OSTW-K-MF
Features:
- Thermocouple connector designed to connect TC wire or temperature sensor instrumentation with a temperature controller or process control HMI automation panel.
- Write on window option
- Standard size round pin 2 pole TC connector
- K type male connector / female connector
- Yellow shell
- Accepts stranded, solid, TWSH, overbraid or RSC coil cord wire
- Contact washers for quick connect wire terminations
- Wire termination up to size 14AWG
- Quick connect contact washers and internal wire divider
- Glass filled nylon rated from -29°C to 180°C
Specifications:
| Sensing Type | Thermocouple |
| Temperature Range | -29 to 180 degrees C / -20 to 356 degrees F |
| Thermocouple Calibration Type | Type K |
| Calibration Standard | ANSI |
| Number of Pins or Sockets | 2 pins on male connector / 2 sockets on female connector |
| Compensating Alloy Used in + Connector | Chromega® |
| Compensating Alloy Used in - Connector | Alomega® |
| ANSI Color Code | Yellow |
| Material | Glass-Filled Nylon |
Specifications
| Range | Temperature: -29 to 180 degrees C/ -20 to 356 degrees F |
|---|---|
| Compliant/Standard | ANSI |
| Manufacturer | Omega |
| Model No | OSTW-K-MF |
