Description

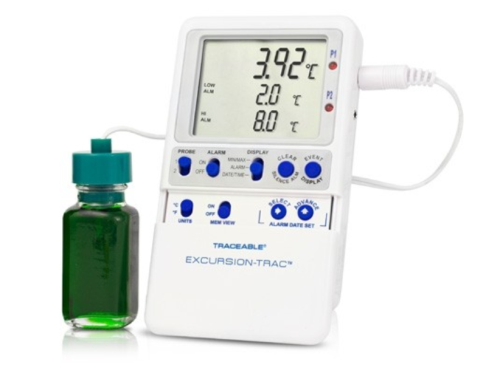

Traceable® Excursion-Trac™ USB Datalogging Thermometer, with Bottle Probe, 6430
Features:
- Datalogging thermometer with user-defined time intervals
- Upload USB data from Excursion-Trac™ data loggers to TraceableLIVE™ cloud
- Meets current CDC requirements for vaccine storage and monitoring
- Rolling memory structure, maintains most recent 525,600 temperature observations
- Smart-Alarm™ features visual/audible alarm that continues to alarm even if unit returns to non-alarm conditions
- Stores up to 10 unique alarm events
- Memory can be cleared on unit after downloading data to USB stick
- Hassle-free retrieval of data - unit can remain in use while downloading and analyzing data
- Status indicators - Low battery, memory full, USB data transfer and active alarm state
- Hi/Lo Alarms and Time/Date Stamps
- Alarm tracking feature stores in memory each alarm event detailing when alarm state occurred, as well as when unit returned back to within range
- Alarm state indicators include visual LEDs, audio alerts, and flashing LCD segments
- Data for up to 10 different alarm events can be retrieved with most current event viewable on display
- Smart-Alarm™ signals out-of-range conditions
- When an out-of-range condition is sensed, Smart-Alarm™ triggers
- Smart-Alarm™ features visual and audible indicators which signal continuously until acknowledged, even if parameter returns to non-alarm range
- USB data transferring
- Recorded data (CSV file) can be transferred from thermometer to PC or Mac using USB flash drive (not included)
- No software is needed for computer interface
- Each thermometer has unique ID allowing multiple units to be used in the same location
- Datalogging Features
- Monitor readings overnight, on weekends, or for any time period with rolling data log
- User-defined datalogging interval of one observation/minute to one observation/24 hours
- Memory capacity maintains year of recorded data when using 1 minute intervals and longer when using larger intervals
- Highly accurate and reliable
- High-accuracy thermometer has temperature range of –58 to 158 °F (–50 to 70 °C) and resolution of 0.01 and maintains an accuracy of ± 0.25°C acrossentire temperature range
- Ideal for monitoring temperatures in refrigerators, freezers, water baths, heating blocks, and incubators
- Bottle probe features
- Sealed in miniature bottle filled with nontoxic glycol
- Solution is GRAS (generally recognized as safe) by the FDA (Food and Drug Administration)
- Eliminates concerns about incidental contact with food or drinking water
- Temperature-buffered bottle sensor eliminates rapid changes when refrigerator door is opened
- Ideal for use in monitoring storage conditions for vaccines or other important samples
- Do not immerse bottle probe in liquid
- Traceable® Certificate
- Multi-point calibration on individually-numbered Traceable® Certificate which assures accuracy from ISO/IEC 17025:2017 (1750.01) calibration laboratory accredited by A2LA
- Indicates traceability of measurements to the SI units through NIST or other recognized national measurement institutes (NMI) that are signatories to the CIPM Mutual Recognition Agreement
Included:
- One bottle probe
- Stand
- Hook and loop tape
- Magnetic strips
- Wall mount
- Traceable® Certificate
- 2 Batteries, 1.5 V AAA Alkaline, (1105)
Specifications:
| Resolution | 0.01 ° |
| Temperature Sampling Rate | 5 seconds |
| Memory Capacity | 525,600 points |
| USB Download Rate | 55 readings/second |
| Traceable | Yes |
Specifications
| Range | Temperature: -50.00 to 70.00 degrees C (-58.00 to 158.00 degrees F) |
|---|---|
| Material | High-impact, chemical-resistant ABS plastic case |
| Power | 2 Batteries, 1.5 V AAA Alkaline |
| Application | Temperature monitoring in refrigerators, freezers, water baths, heating blocks, and incubators |
| Accuracy | +/- 0.25 degrees C |
| Dimensions | 2-3/4 in. x 4-1/4 in. x 3/4 in. |
| Weight | 5 oz. |
| Manufacturer | Traceable |
| Model No | 6430 |
