Description

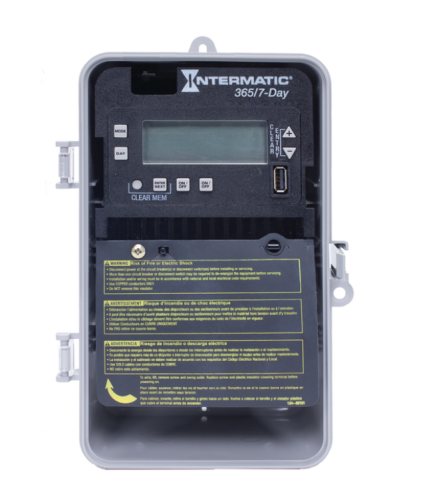

Intermatic® Timer, 365 Day/7 Day 2-Circuit Electronic Control, 120-277 VAC, 2-SPST/DPST, Indoor Metal Enclosure, ET2725C
Features:
- 100-hour supercapacitor eliminates need for batteries
- Up to 96 set points or events
- Up to 50 holiday blocks with schedule capabilities
- Automatic input voltage selection from 120 to 277 VAC, 60 Hz
- Additional mode of operation turns ON/OFF buttons into 2-hour overrides
- Configurable outputs allow control of various voltages and applications
- Relays incorporate zero-crossing technology to extend life of control
- Non-volatile EEPROM memory protects programming indefinitely
- LED compatible
- USB port makes transferring and saving of schedules easy
Specifications
| Range | 365 day / 7 day Dual channel |
|---|---|
| Range | Maximum on/off times: indefinite, Maximum on/ off operations 96 |
| Range | Minimum on/off times: 1 min |
| Material | Indoor metal enclosure |
| Power | 120-277 VAC, 60 Hz, 30 A |
| Compliant/Standard | cULus |
| Operating Environment | Temperature: -40 to 40 degrees C / -40 to 104 degrees F |
| Other | Wire size: #14 AWG to # 8 AWG |
| Dimensions | H x W x D: 200 x 130.2 x 87.3 mm / 7.875 x 5.125 x 3.437 in. |
| Manufacturer | Intermatic |
| Model No | ET2725C |
| Warranty | 2 year limited |
