Description

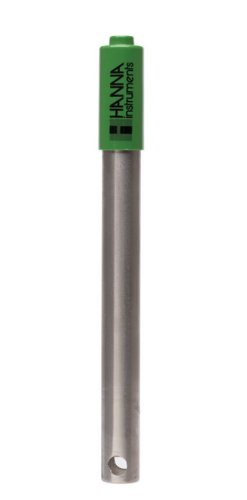

Hanna Instruments® Titanium Body pH Electrode for Plating Baths with DIN Connector, HI62911D
Features:
- Titanium body, polymer filled, double reference junction pH electrode with a DIN connector
- Recessed, flat tip sensing portion of electrode is made with general purpose glass
- PTFE type junction along with a built-in temperature sensor and amplifier within single probe design
- This design consideration is ideal for measuring the pH in plating baths
- Designed for use with Hanna's HI99131(HAN-HI99131) pH meter
Specifications:
| Reference | double, Ag/AgCl |
| Junction / Flow Rate | PTFE |
| Electrolyte | polymer |
| Maximum Pressure | 3 bar |
| Tip / Shape | flat |
| Diameter | 14 mm |
| Body Length | 120 mm / 160 mm |
| Temperature Sensor | yes |
| Matching Pin | yes |
| Amplifier | yes |
| Body Material | titanium body working as matching pin |
| Cable | 7-pole; 1 m (3.3’) |
| Recommended Use | plating |
| Connection | DIN |
Specifications
| Material | Titanium body, glass tip |
|---|---|
| Application | pH for plating baths |
| Operating Environment | 0 to 80 degrees C (32 to 176 degrees F) - General Purpose |
| Manufacturer | Hanna Instruments |
| Model No | HI62911D |
