Description

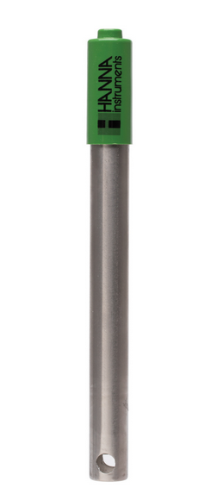

Hanna Instruments® Titanium Body pH Electrode for Plating Baths with Quick DIN Connector, HI629113
Features:
- Titanium body, polymer filled, double reference junction pH electrode with a Quick DIN connector
- Flat tip sensing portion of electrode is made with general purpose glass and recessed for protection against damage
- PTFE type junction along with built-in temperature sensor and amplifier within single probe design
- Ideal for measuring the pH in plating baths
- For use with Hanna's HI99131 (HAN-HI99131) pH meter
- Matching pin to isolate current/magnetic fields from reference electrode
Specifications:
| Description | HI629113 |
| Reference | double, Ag/AgCl |
| Junction / Flow Rate | PTFE |
| Electrolyte | polymer |
| Max Pressure | 3 bar |
| Tip / Shape | flat |
| Temperature Sensor | yes |
| Amplifier | yes |
| Body Material | titanium body working as matching pin |
| Cable | 7-pole; 1 m (3.3 ft.) |
| Recommended Use | Use plating baths |
| Connection | Quick Connect DIN* |
Specifications
| Range | pH: 0 to 13 |
|---|---|
| Application | pH in plating baths |
| Operating Environment | 0 to 80 degrees C (32 to 176 degrees F) - General Purpose |
| Connectivity | Quick Connect DIN |
| Manufacturer | Hanna Instruments |
| Model No | HI629113 |
