Description

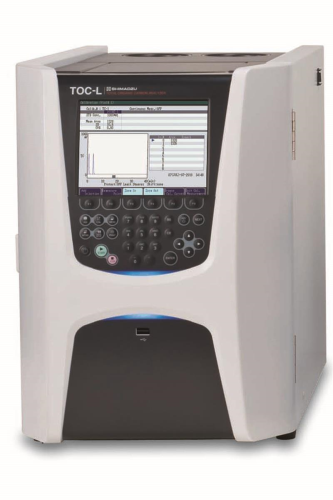

Shimadzu Total Organic Carbon Analyzer, TOC-L Series
This series of TOC analyzer utilizes the Shimadzu-designed, global standard, 680 °C combustion catalytic oxidation/non-dispersive infrared (NDIR) detection method and offers the optimum selection of performance features and options to meet the specific requirements for your TOC testing. Samples from aqueous samples ranging from ultrapure water, drinking water, wastewater, brine water, and seawater to solid and gaseous samples (with optional equipment) can be analyzed. The combustion catalytic oxidation method allows analysis of both easy-to-decompose, low-molecular weight organic compounds and hard-to-decompose insoluble and macromolecular organic compounds.
Features:
Extremely wide measurement range from 4 µg/L to 30,000 mg/L with a detection limit of 4 µg/L
Reliable sample injection system with automatic sample acidification and sparging
Automatic sample dilution function to reduce salinity, acidity, and alkalinity which extends the use of catalysts and combustion tubes Stat or priority samples can be added at any time without interrupting operation even with an autosampler Multiple models available from stand-alone or PC-controlled, high-sensitivity or standard models
Options available to enhance functionality, such as, autosamplers, stirrer unit, TN (total nitrogen) unit, carrier gas purification unit, solid combustion unit, small sample volume kit, etc.
Space-saving and energy-saving design
Automatic settings for optimal measurement conditions, optimal calibration curve, changing conditions, re-measurement of out-of range samples, exclusion of anamolies, re-calculation of repeated measurements, and sleep/restart modes
Applications:
Effluent treatment process control for wastewater, plating, industrial processes, water recyling Quality control for drinking water, ultrapure water, boiler water, electronic components, raw materials, manufacturing, pharmaceuticals Environmental monitoring for river, lakes and marshes, underground water, sea water, soil, sludge, sediments Biodegradable plastics and cement secondary products
Product Details:
This series of TOC analyzer utilizes the Shimadzu-designed, global standard, 680 °C combustion catalytic oxidation/non-dispersive infrared (NDIR) detection method and offers the optimum selection of performance features and options to meet the specific requirements for your TOC testing. Samples from aqueous samples ranging from ultrapure water, drinking water, wastewater, brine water, and seawater to solid and gaseous samples (with optional equipment) can be analyzed. The combustion catalytic oxidation method allows analysis of both easy-to-decompose, low-molecular weight organic compounds and hard-to-decompose insoluble and macromolecular organic compounds.
Features:
Applications:
Product Details:
| Items | High-sensitivity Model | Standard Model | ||
| Models Available | TOC-L CPH | TOC-L CSH | TOC-L CPN | TOC-L CSN |
| Measurement Method | 680 °C combustion catalytic oxidation—non-dispersive infrared detection (NDIR) method | |||
| Operation Method | PC-controlled | Stand-alone (PC control available) | PC-controlled | Stand-alone (PC control available) |
| Measured Items | TC, IC, TOC (= TC - IC), NPOC (TOC measurement via acidification and sparging) Optional: POC, TOC (= NPOC + POC), TN | |||
| Detection Limit | TC, IC: 4 µg/L, TN: 5 µg/L | TC: 50 µg/L, IC: 4 µg/L, TN: 20 µg/L | ||
| Reproducibility |
TC, IC, NPOC: CV 1.5% max. or ±4 µg/L max (Optional TN: CV 3.0% max. or ±5 µg/L max) |
TC, NPOC: CV 1.5% max. or ±50 µg/L max, IC: CV 1.5% max. or ±4 µg/L max (Optional TN: CV 3.0% max. or ±20 µg/L max) | ||
| Measuring Time | TC: approx. 3 min, IC: approx. 3 min (Optional TN: approx. 4 min) | TC: approx. 3 min, IC: approx. 4 min (Optional TN: approx. 4 min) | ||
| Sample Injection | Automatic sample injection using a syringe pump and slide type injection mechanism | |||
| Sample Injection Volume | 10 to 2,000 µL variable | TC: 10 to 150 µL variable, IC: 10 to 4,500 µL variable | ||
| IC Removal | Automatic addition of acid and sparging | |||
| Sample Dilution | Dilution rate of 2x to 50x (automatic sample dilution by syringe pump), dilution accuracy: ±2% max. (2x to 20x), ±5% max. (21x to 50x) | |||
| Display and Operations | Operated by PC | Operation by color LCD screen and keyboard (operation by PC is also possible) | Operated by PC | Operation by color LCD screen and keyboard (operation by PC is also possible) |
| External Memory (stand-alone type) | — | USB flash memory used | — | USB flash memory used |
| Printer (stand-alone type) | Portable thermal printer and PC USB printer can be used | |||
| Carrier Gas |
High-purity air (CO, CO2, HC content: Each 1 ppm max., dew point: -50 ºC max.) Supply pressures: 200 ±10 kPa (additional use of optional carrier gas regulator: 300 to 600 kPa) Optional use of nitrogen gas (not possible in the TN measurement). With the standard model, optional use of pressurized gas. | |||
| Gas Consumption | 150 mL/min (230 to 250 mL/min during sparging) (Variable flow rate) | 230 mL/min (A separate 100 mL/min is required for sparging with ASI-L.) (Variable flow rate) | ||
| Dimensions, WxDxH | 340 x 660 x 480 mm (Excluding protrusions. For details, see External Dimensions Diagram) | |||
| Weight | Approx. 35 kg | |||
Specifications
| Range | TC: 0 to 30000 mg/L; IC: 0 to 3000 mg/L (optional); TN: 0 to 10000 mg/L; POC: 0 to 500 mg/L |
|---|---|
| Power | 100 to 240 VAC; 600 VA (permitted range; 90 to 264 V AC) |
| Application | Aqueous (Optional: Solid/Gas Samples) |
| Accuracy | TC; NPOC; CV 1.5% max. or +/-50 µg/L max; IC; CV 1.5% max. or +/-4 µg/L max (Optional TN; CV 3.0% max. or +/-20 µg |
| Compliant/Standard | CE / EPA 415.3; SM 5310B; ASTM D7573 |
| Operating Environment | 5 to 35 degrees C Ambient Temperature |
| Manufacturer | Shimadzu Inc |
| Model No | TOC-L CSN (Standard Stand-Alone) |
