Description

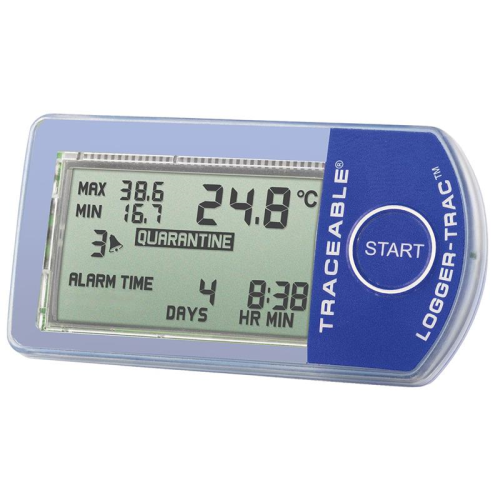

Control Company™ Traceable® Logger-Trac™ Datalogging Thermometer, 6540Features:
- The ultimate in monitoring thermometers — perfect for material transportation temperature monitoring
- Displays current, minimum and maximum temperature achieved and cumulative running time; once alarm condition occurs, logger will also display alarm tally, "ALARM" notification, cumulative alarm, "QUARANTINE" , alarm icon
- Displays cumulative alarm duration from user selected minimum/maximum values without download of data
- Minimum and maximum temperatures selectable in 1 ° increments
- Cumulative alarm starts each time reading is outside of acceptable temperature parameters to provide total excursion time
- Alarm tally is incremented when reading is outside parameters
- Quarantine notification may be set by user to display "QUARANTINE" when alarm tally reaches maximum acceptable number of excursions (1 to 99) — instantly alerts user to perform detailed data analysis
- User selectable recording intervals either based on number days to log (from 4 hrs to 365 days) or on desired time interval (from every 2 seconds to every 24 hours)
- Data recording up to 7680 readings — stops when memory is full so no data will be lost.
- Reusable/re-programmable — pre-programmed with alarm values of 2 °C (low) and 8 °C (high) and recording interval to allow for 30 days of recordings (recordings logged ever 5 minutes, 33 seconds)
- Intergrates with MaxiThermal™ software for complete data analysis
- Multi-point calibration on individually numbered Traceable® certificate assures accuracy from the ISO/IEC 17025:2005 (1750.01) A2LA accredited calibration laboratory — indicates traceability to SI units through NIST or other recognized national measurement institues (NMI) that are signatories to the CIPM Mutual Recognition Agreement
- Reagents
- Clincial samples
- Vaccines
- Pharmaceuticals
- Food items (any locations)
- Sample and other material transport
- Traceable® Certificate
- 3V CR2016 Lithium coin cell battery
| Temperature Range | -31 to 122 °F / -35 to 50 °C |
| Temperature Resolution | 0.1° |
| Temperature Accuracy | ±0.2 °C from 0 to 10 °C; ±1 °C otherwise |
| Internal Temperature Accuracy | ±0.2 °C from 0 to 10 °C; ±1 °C otherwise |
| Minimum/Maximum Memory | Yes |
| Maximum Flash Memory Storage | 7680 readings |
| Programmable | Yes, minimum, maximum and recording intervals |
| Data Logging | Yes |
| Exportable Data | Yes |
| Export Data (output method) | 6580 software and 6570 cradle required |
| Dimensions | 2.56 x 1.34 x 0.35 inches |
| Weight | 0.65 oz. |
| Waterproof | Yes, IP66 rating |
| Power | CR2016 3V Lithium Coin Cell Battery |
| A/C Plug | No |
| Traceable | Yes |
