Description

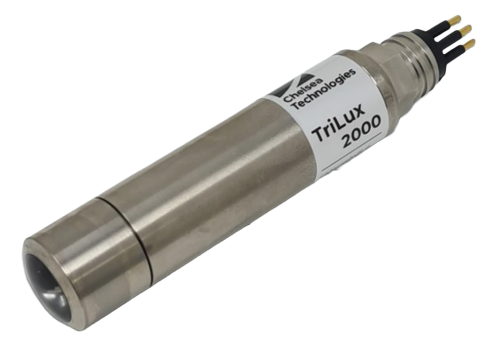

Chelsea Technologies® Trilux® Multiparameter Algae Fluorometer (Algaecheck), Chelsea Technologies, 2400-019-PL
Features:
- Monitors 3 parameters in a single, highly sensitive probe
- Chlorophyll a, Phycoerythrin, Phycocyanin
- Chlorophyll a, Turbidity, Phycoerythrin
- Chlorophyll a, Turbidity, Phycocyanin
- Low cost solution for widespread algae monitoring and large scale monitoring programmes
- Real-time data output in μg/l
- User configurable sampling frequency from 0.1 Hz to 3 Hz
- Robust ambient light and turbidity rejection
- Data display and logging with Hawk and Watchkeeper accessories
Applications:
- Monitoring within water treatment plants
- Algal bloom monitoring in rivers, lakes, estuaries and oceans
- Integration within marine CTDs, water quality sondes, buoys, AUVs and towed vehicles
Specifications:
| Pressure housing | Titanium (2000 m) |
| Depth rating | 2000 metres |
| Connector | MCBH-6-MP |
| Input voltage | 11 to 25 Vdc |
| Data output | Digital RS232 and analogue 0 to 5 Vdc (or RS422, SDI-12 and 4-20 mA options) |
| Power requirements | <1 Watt @ 12 V |
| Limit of Detection |
Typically 0.1 % of full range |
Specifications
| Range | Calibrated for 0-100 µg/L (Chlorophyll a in acetone) |
|---|---|
| Dimensions | 26.5 mm diameter x 140 mm length (including connector) |
| Weight | 190 g (in air) |
| Manufacturer | Chelsea Technologies |
| Model No | 2400-019-PL |
