Description

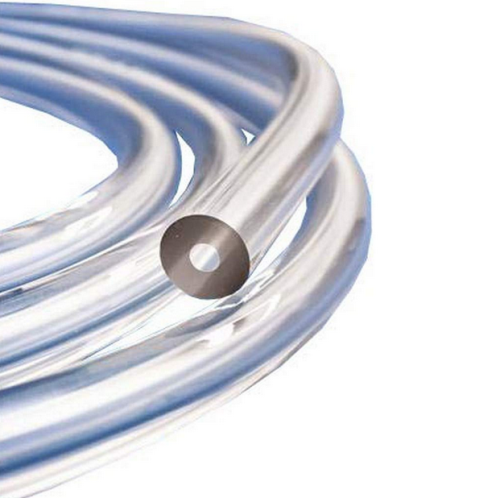

Saint Gobain Performance Plastic® Tubing, TYGON Vacuum, E-3603 Formulation, 1/2 in. I.D. x 5/16 in. Wall, ACF00040
Features:
- Non-DEHP, bio-based plasticizer
- Bio-based formulation reduces environmental impact
- Lot-to-lot consistency for reproducible results
- Non-toxic and non-contaminating
- Smooth, polished inner wall
- Slips easily over fittings and grips securely for simple lab set-ups
- Contains no BPA or phthalates
- Standard sizes available to hold full vacuum at room temperature
- Glassy smooth inner bore helps prevent buildup
- Meets all USP Class VI, (EU) 10/2011, (EC) 1935/2004, and FDA food contact criteria
- Fully autoclavable and sterilizable
Specifications
| Range | Maximum pressure: 45 psi at 73 degrees F / 3.1 bar at 23 degrees C |
|---|---|
| Range | Maximum temperature: 165 degrees F |
| Range | Maximum vacuum: 29.9 in. Hg at 73 degrees F / 760 mm Hg at 23 degrees C |
| Range | Bend radius: 7/8 in. / 22.2 mm |
| Material | Thermoplastic elastomer (TPE) |
| Dimensions | Inside diameter x outside diameter x wall thickness: 1/2 x 1-1/8 x 5/16 in. / 12.7 x 28.6 x 7.9 mm |
| Manufacturer | Saint Gobain Performance Plastic |
| Model No | ACF00040 |
