Description

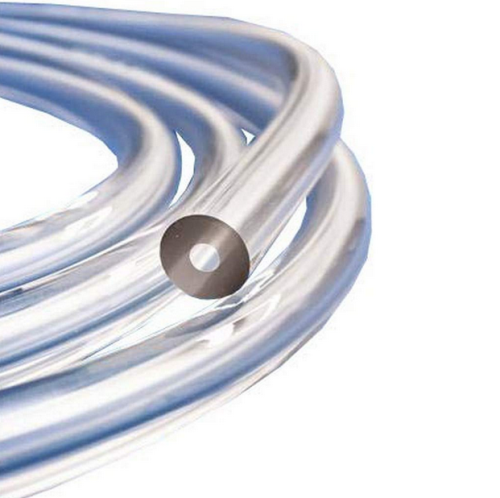

Saint Gobain Tubing, TYGON Vacuum, E-3603 Formulation, 1/4 in. Inside Diameter x 3/16 in. Wall Thickness, ACF00020
Features:
- Bio-based formulation reduces environmental impact
- Lot-to-lot consistency for reproducible results
- Easily slips over fittings and grips securely
- Contains no BPA or phthalates
- Meets all USP Class VI and FDA food contact criteria
- Sterilizable by autoclave or ethylene oxide
- Able to withstand most organics found in laboratory
- Non-oxidizing and non-contaminating
- Ideal for general-purpose, laboratory, and single-use applications
- Less permeable than rubber tubing
- Glassy-smooth inner bore prevents buildup and facilitates easy cleaning
- Resistant to flex-fatigue and abrasions
- Extra-heavy walls tolerate full vacuum at room temperature
- Free technical application support available to assist with tubing selection
Applications:
- Analytical instruments
- General laboratory - condensers, desiccators, gas lines, and drain lines
- Peristaltic and vacuum pump
Specifications
| Range | Maximum working pressure at 73 degrees F: 54 psi / 3.7 bar |
|---|---|
| Range | Temperature: -51 to 165 degrees F / -46 to 74 degrees C |
| Range | Bend radius: 1/2 in. / 12.7 mm |
| Material | Thermoplastic elastomer (TPE) with a bio-based, non-DEHP plasticizer |
| Compliant/Standard | FDA 21 CFR 170-189, USP, NSF 51, and European regulations (10/2011/EU, 1907/2006/EC, 1935/2004/EC) |
| Dimensions | 1/4 in. inside diameter x 5/8 in. outside diameter x 3/16 wall thickness |
| Manufacturer | Saint Gobain Performance Plastic |
| Model No | ACF00020 |
