Description

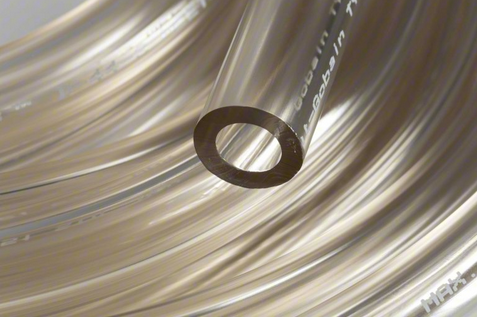

Saint Gobain Performance Plastics® Tygon SE™ B-44-4X Food, Milk, and Dairy, Phthalate-Free, 5 in. O.D x 4 in. I.D. x 1/2 in. Wall, 10 ft/PK, AAA06088
Features:
- Designed to ensure bacterial-free, phthalate-free, fluid path in wide variety of food processing applications
- Smooth, non-porous bore that will not trap particulates or promote bacterial growth
- Compatible with foods containing high oil content
- Resistant to harsh alkaline cleaners and sanitizers
- Excellent alternative to rigid piping systems
- Combines high performance standards with eco-friendly tubing design
- Lightweight, flexible and readily bends to accommodate abrupt corners and obstructions, requiring minimum of couplings and fittings
- Flexibility can save up to one-third the footage and much of labor required to install rigid stainless steel or plastic piping
- Available in large bore sizes (up to 6 inside diameter), making it flexible alternative to rigid piping systems
- Provides complete clarity for positive visual inspection and flow control
- Special construction of tubing is also available to meet applications involving elevated pressure with reinforcement added to withstand up to four times the pressure
Specifications:
| Applications | Food, Beverages, Water |
| Color | Clear |
| Hardness | Shore A 66 |
| Material | Tygon™ Thermoplastic elastomers (TPE) |
| Maximum Operating Pressure | 19 psi @ 73°F |
| Maximum Operating Temperature | 165 °F |
| Maximum Vacuum Pressure | 6 in Hg |
| Peristaltic Pump Compatible | Yes |
| Food and Beverage Compatibility | Citric Acid; Dairy; Distilled Water; Glycerin; Milk; Non-Potable Water; Orange Juice; Potable Water; Salt Water; Soft Drinks; Vinegar |
| Petroleum Compatibility | Mineral Oil |
| Chemical Compatibility | Acetic Acid 10% |
Specifications
| Compliant/Standard | FDA, NSF, 3-A, Japan Food Sanitation Law # 370/1959, REACH, 1935/2004/EC and 10/2011/EU for many foods/beverages |
|---|---|
| Manufacturer | Saint Gobain Performance Plastics |
| Model No | AAA06088 |
