Description

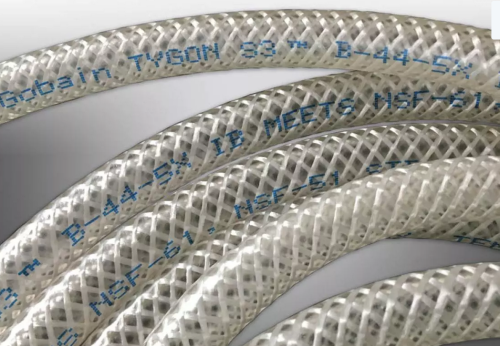

Saint Gobain® Tygon Tubing, B-44-5X 1B, 1 in. ID x 1-3/8 in. OD x 3/8 in. Wall, AMH00064
Features:
- All layers compliant with FDA and EU food contact regulations
- Handles four times the pressure of non-reinforced tubing
- Improved flexibility at sub-zero temperatures
- Smooth, non-porous bore resists particle entrapment
- Clear wall enables visualization of fluid flow
- Connects easily to ReSeal® Sanitary Fittings Regulatory
Specifications
| Range | Minimum bend radius: 3-3/4 in. / 95 mm |
|---|---|
| Range | Maximum working pressure: 100 psi at 73 degrees F/6.9 bar at 23 degrees C, 60 psi at 160 degrees F/4.1 bar at 71 degr C |
| Range | Vacuum rating: 20 in Hg at 73 deg F/ 508 mm Hg at 23 deg C, 5 in Hg at 160 deg F 127 mm Hg at 71 deg C |
| Material | Food-safe Polyvinyl chloride (PVC) tubing with polyester braids |
| Compliant/Standard | NSF-51, NSF-61, 3-A Sanitary standard 20-27, FDA Food |
| Other | Length: 50 ft / 15.2 m |
| Dimensions | Inside diameter x outside diameter x wall thickness: 1 x 1-3/8 x 3/16 in. / 25.4 x 34.96 x 4.76 mm |
| Manufacturer | Saint Gobain Performance Plastics |
| Model No | AMH00064 |
