Description

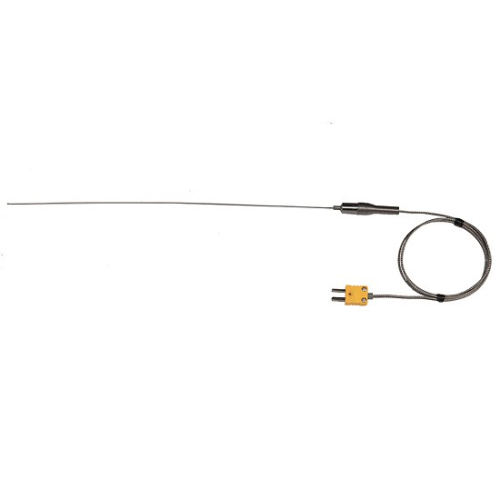

Digi-Sense® Type-K, Hi-Temperature 25" L x 0.63" Diameter Probe with Mini-Connector, Exposed, 3 ft 24-Gauge, WD-93631-20Features:
- Designed for multiple bends in any environment — bends around pipe diameters as small as twice the sheath diameter
- Response Time: 1.5 seconds or greater
- ICONEL® 600 Sheath
- Insulated with thightly packed powdered MgO in 25" long sheaths
- Probe includes 3 ft stranded 24 guage (0.020" diameter) fiberglass wire with stainless steel over braid
- Colord conded ANSI mini-connector (Yellow)
- Custom designs available upon request
- Stainless steel handle rated to 450 °F (232 °C); connector rated to 392 °F (200 °C)
| Probe Type | K |
| Temperature Range | -250 to 1690 °F (-150 to 920 °C) |
| Temperature Accuracy | ± 3.0 °F (± 1.1 °C); or ± 0.4% of reading above 212 °F (100 °C); ± 3.6 °F (± 2.2° C) or 2 % of reading between-58 to 211 °F (-50 to 99 °C); ± 7.2 °F (± 4 °C) or 4 % of reading between -60 to -238 °F (-51 to -150 °C), whicheveris greater |
| Junction | Exposed |
| Connector Type | Color-coded yellow mini-connector |
| Sheath Material | ICONEL® 600 |
| Handle Material | Stainless steel |
| Sheath Length | 25 inches |
| Sheath Diameter | 0.0625 inches |
| Cable Type | 3 ft stranded 24 gauge (0.020" diameter) fiberglass wire withstainless steel over braid |
