Description

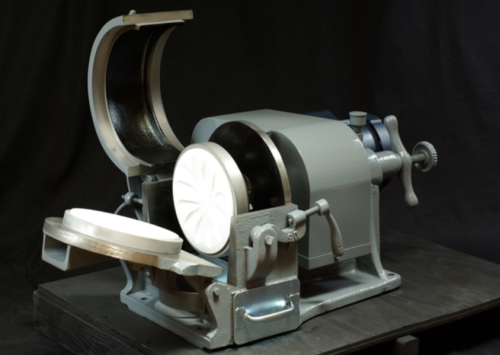

Bico Inc. ® UA V-Belt Driven Pulverizer, 110/220 V, 2 HP, 1 PH, 60 Hz, 242-53X2S
Features:
- Will accept a 1/4" dry friable material and reduce it to a fine powder of 150-200 mesh at approximately 1 lb/minute (based on quartz)
- 8" grinding plates (included) can be adjusted and locked into position to obtain required particle size
- Plates are offered in variety of materials and hardness to suit user's grinding needs and budget requirements
- Entire grinding chamber is accessible for easy cleaning and greater sample recovery
- V-Belt operation
- Safety guards and ore pan included
- Low maintenance
- Small footprint
Specifications
| Range | Speed: 900 to 1000 RPM |
|---|---|
| Capacity | 1 lb (per minute) |
| Power | 110/220 V, 2 HP,1 PH, 60 Hz |
| Other | Input size: 1/4 in. Dry Fryable Material |
| Other | Output size: 150 - 200 Mesh |
| Dimensions | (L) 37 in. x (W) 22 in. x (H) 23 in. |
| Manufacturer | Bico Inc |
| Model No | 242-53X2S |
