Description

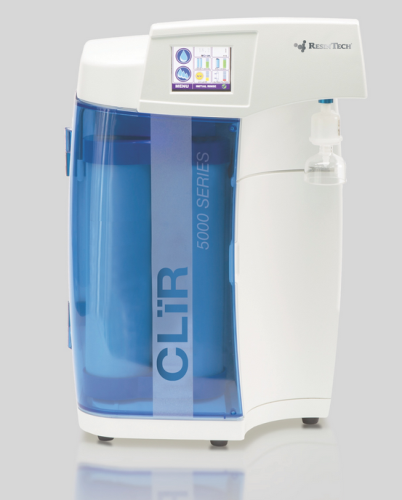

ResinTech® Ultrapure Lab Water System, CLiR 5200 Benchtop Configuration with UV Oxidation, 120 V, CLS-5200-S-1
Features:
- Designed specifically for trace organics and analytic chemistry applications requiring low organics and bacteria
- Delivers up to 2.5 LPM of Type I, 18.2 Megohm water quality on demand
- Purifies using multi-stage purification process to produce Type I Water
- High-purity ion exchange resins to remove dissolved minerals, and ultraviolet light for bacteria sterilization and TOC reduction
- Uses dual wave length technology to reduce organics and sterilize bacteria at same time
- Subsequent stage uses 0.2 micron filter to remove particulates and bacteria before dispensing
- Intuitive 'touch-screen' display monitors system health and remaining life of filter cartridges
- Intermittent recirculation ensures that water inside unit is continuously moving when not in use, mitigating any chance of bacterial growth
- Convenient, programmable presets allows dispensing of frequently used volumes with speed and precision
- Applications include general water chemistry, reagent preparation and buffers plus HPLC, LC, ICP-OES/ICP-MS
- Certain applications like HPLC and LC, require ultrapure water with TOC levels less than 5 ppb - water is typically used in preparation of mobile phase preparation, creating blanks, and sample dilution
- For trace metals analysis, ICP-OES/ICP-MS require organic and ionic purity for their dilution and dissolution processes
- Cartridges and final filter sold separately
- Real Time Quality Monitoring With Leak Detection
- Compact Design With Remote Dispense Option
- Quick Change, No Tools Cartridge Design
- Large Capacity, Low Cost Consumables Cartridges
- Genuine Resintech Media
- UV Oxidation (5200 & 5400 Only)
- Ultrafiltration (5300 & 5400 Only)
- TOC Monitoring (Optional in 5200 & 5400 Only)
- Made in U.S.A.
System Requirements:
| Source Water/Type | Reverse osmosis (RO) or Service deionization (SDI) |
| Conductivity | RO: <20 microS/cm, SDI: >1 MOhm resistivity |
| TOC (Optional) | RO: <50 ppb, SDI: <200 ppb |
Specifications
| Range | Resistivity: 18.2 Megohm- cm |
|---|---|
| Range | Flow Rate: Up to 2.5 LPM |
| Range | Bacteria: < 1 CFU/ml, TOC: < 5 ppb |
| Range | Particulates: < 0.2 micron |
| Power | 110 VAC 60 Hz (1.0 amp) |
| Operating Environment | Temperature: 4 degrees C to 38 degrees C |
| Dimensions | Width x depth x height: 14.70 x 14.40 x 21.60 in. |
| Weight | 35.4 lbs |
| Manufacturer | ResinTech Inc |
| Model No | CLS-5200-S-1 |
