Description

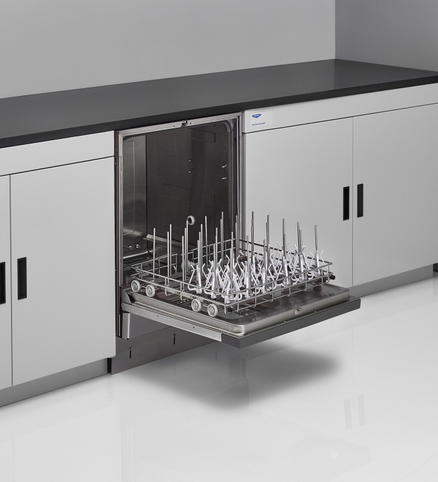

Labconco® Undercounter Steamscrubber With No Window, 208/230V, 50/60 Hz, Labconco, 401001010
Features:
- Designed to wash and dry a wide variety of narrow-neck and general purpose labware
- Brilliant 5” touch screen display featuring CleanWorks OS® gives users full control of wash parameters and washer settings
- Included lower 304 stainless steel spindle rack consists of 36 detachable large spindles, and 18 glassware holders for narrow-neck glassware such as volumetric and Erlenmeyer flasks, 36 adjustable height clips, 10 small spindles with clips, 36 spindle plugs and 12 spindle arm plugs
- Maximum wash temperature of 93 °C (199 °F)
- Water and detergent are pumped through spindles to reach innermost areas of glassware
- Optional specialized inserts for pipettes, graduated cylinders, small vials, culture tubes and small utensils makes the FlaskScrubber an extremely versatile glassware washer
- Forced air drying through spindles and chamber ensures thorough drying inside and out—programmable up to 240 minutes and from 25 to 80 °C (77 to 176 °F)
- Can be configured to include robust single- or three-phase heating
- Users can increase capacity by adding an optional Upper Spindle or Standard Rack
- Lower Standard Rack may be used instead of the Lower Spindle Rack to provide even more versatility
- 304 stainless steel top, door, tank, upper and lower wash arms—freestanding models also have stainless steel exterior sides and top
- One-piece, tool-free, stainless steel, fine mesh particle drain filter
- Four leveling feet offering increased height adjustability
- Aluminum-backed insulation and fiberglass thermal blanket
- Factory-installed drain hose and band clamp
- IQ/OQ available
- Steam generator that produces hot vapor to help remove stubborn labware contaminants
- Pump rated at 96 gal/min (363 L/min) when operated at 115 V, 60 Hz and 208/230 V, 50 Hz and 112 gal/min (424 L/min) on 208/230 V, 60 Hz
- Synchronous drain pump rated at up to 4.2 gal/min (16 L/min)
- Purified water pump to bring non-pressurized purified water into tank for up to eight pure water rinses
- Electronic door latch with SpeedVent Technology® to facilitate faster drying
- Detergent dispenser for powder or liquid detergent
- Level-sensing 6 mL rinse aid solution dispenser
- Operation at or below 62 decibels
- 9 factory-set programs: RINSE ONLY, PLASTIC, GLASS, GLASS PLUS, LIFE SCIENTIFIC, ANALYTICAL, DRY ONLY, ECO WASH, CLEAN WASHER
- Up to 200 user-defined programs
- Clear and specific alarm displays
- Calibratable setpoints such as: temperature, fill volume, detergent dispensing
- Self diagnostics to aid in servicing and troubleshooting
- Password protection to secure washer from unauthorized changes
- User configurable delayed start (up to 12 hours)
- USB data output
Specifications:
| SteamScrubber Glassware Washer | |
| Stainless Steel (304) | |
| Hot water inlet 1.25 GPM (4.7 LPM), Cold water inlet of 3.5 GPM (13.2 LPM) | |
| N/A, can be supplied from pressurized and non-pressurized sources | |
| 190.6 L chamber volume | |
| As low as 12.9 L | |
| Lower spindle rack | |
| 120 °F | |
| 71 °C | |
| 49 °C | |
| Full-color Touch Screen | |
| Laboratory Glassware Washer | |
| 120 psi (inlet) | |
| 6.73 ft.3 chamber volume | |
| 9 programs with 1 to 9 total cycles | |
| Undercounter Washer | |
| Ideal for College and University, Government, Pharmaceutical and Industrial Labs or Any Facility Utilizing Reusable Glassware | |
| 120 °F | |
| 160 °F | |
| 49 °C |
Specifications
| Range | Temperatures to 93 degrees C (199 degrees F) |
|---|---|
| Power | 208/230V, 50/60 Hz, 11 A, 1P; requires dedicated 20 A circuit |
| Compliant/Standard | ADA Height, CAN/CSA C22.2, CE, ETL, UL |
| Dimensions | 24.1 in. w x 27.7 in. d x 32.1 to 36.0 in. height (61.2 w x 70.4 d x 81.5-91.4 h cm) |
| Weight | 206.0 lbs (93.4 kg) |
| Manufacturer | Labconco Corporation |
| Model No | 401001010 |
| Warranty | 2 years parts and labor |
