Description

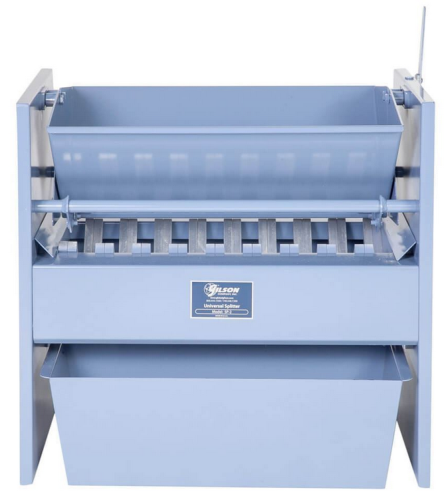

Gilson® Universal Sample Splitter, 0.55 ft3 Hopper Capacity,
Features:
- Compact and more durable than conventional portable splitters
- Provides accurate and representative samples for wide range of materials
- Exclusive, adjustable chute system and proprietary lever-release hopper
- These lightweight models have ample 0.55 ft3 / 15.8 L hopper capacity for materials up to 1.5 in. / 38 mm
- Convenient for floor or benchtop positions
- Chutes have 45° chute angles better suited to mineral aggregates
- Chutes are formed by series of precision-machined aluminum bars pivoting on rod through their lower ends to direct equal amounts of material to each side into sample collection pans
- Additional pans available separately — 91-7620-01 (Gilson SPA-101) with a capacity of 14 qt / 13 L
- Adjustable-width chutes offer optimal versatility for reducing bulk samples
- Lever-release gated hoppers enable samples to flow evenly across the entire width of chutes
- Five capacities for up to 5in topsize
- Compliant with multiple ASTM and AASHTO standards
Included:
- Universal Sample Splitter
- 2 sample collection pans
Specifications:
| Maximum Particle Size | 1.5 in. / 38.1 mm |
| Hopper Capacity | 0.55 ft3 / 15.6 L |
| Number of Chute Bars | 36 |
| Chute Angle | 45° |
| Chute Bar Width | 0.5 in. / 13 mm |
Specifications
| Capacity | 0.55 ft3 / 15.8 L |
|---|---|
| Compliant/Standard | AASHTO T 248, ASTM C702/702M, AASHTO R 76 |
| Dimensions | W x D x H: 22 x 14.5 x 20.5 in. / 559 x 368 x 521 mm |
| Weight | Shipping: 71.0 lb / 32.21 kg |
| Manufacturer | Gilson Company |
| Model No | SP-2 |
