Description

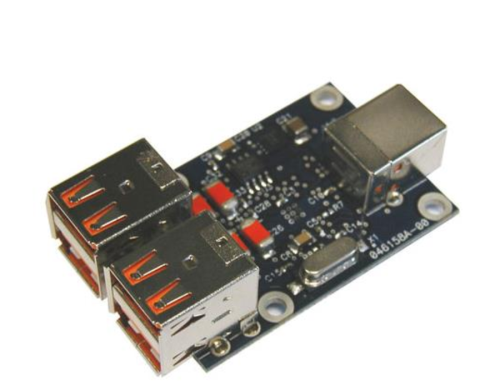

Advantech® USB 4 Port Hub, Industrial Grade, OEM Module, BB-USBHUB4OEM
Features:
- More robust than office grade hubs
- Isolation and ESD protections are ideal for electrically harsh environments
- High Retention USB Port connectors hold standard USB cables tight – requiring up to 1.54 kg (3.4 lb) force to disconnect them
- Expand 1 USB Port to 4
- Ultra-compact, Open Bare-board Design
- ESD Protection - 8 kV Contact, 15 kV Air
- -40 to 80 degrees C Operating Temperature
- Powered from USB Host
- USB 2.0
- Installs as unbranded USB Hub
- USB host port power or external PSU power
- Metal or plastic enclosures – desk, DIN rail mount
Specifications
| Range | Maximum Transfer Rate: 480 mbps |
|---|---|
| Power | 5 Vdc input, 2.5 W, max. consumption, 100 mA downstream per port |
| Compliant/Standard | FCC, ICC, CE, |
| Operating Environment | Temperature: -40 to 80 degrees C / -40 to 176 degrees °F, Relative Humidity: 0 to 95% non-condensing |
| Connectivity | Upstream USB Port: Type B (Female) High Retention |
| Connectivity | Downstream USB Port: Type A (Female) High Retention |
| Dimensions | 34 x 60 x 17 |
| Weight | 22.7 g |
| Manufacturer | Advantech |
| Model No | BB-USBHUB4OEM |
