Description

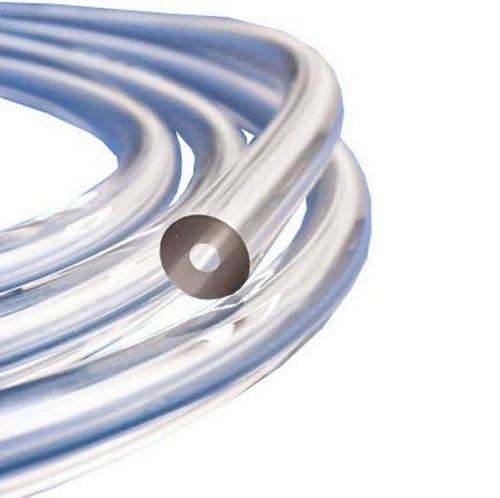

Saint Gobain Performance Plastics® Vacuum Tubing, Tygon E-3603 Formulation, 3/16 in. I.D. x 3/16 in. Wall thickness, 50 ft./PK, ACF00015
Features:
- Tygon® S3™ E-3603 vacuum tubing delivers same superior performance that the R-3603 tubing provided, but formulation contains a non-DEHP plasticizer suitable for laboratory, food and beverage applications
- Handles most inorganic chemicals found in laboratory and can be used in corrosive environment
- Non-oxidizing and non-contaminating, and less permeable than rubber tubing
- Glassy-smooth inner bore helps prevent buildup to facilitate cleaning
- Coils are marked at 1-foot intervals for easy measuring
- Extra-heavy walls of the vacuum tubing can withstand a full vacuum at room temperature (29.9 [759 mm] of mercury at 73 °F [23 °C]) and up to 27 [686 mm] of mercury at 140 °F [60 °C].
Specifications:
| Inside Diameter | 3/16 | 4.8 mm |
| Outside Diameter | 9/16 | 14.3 mm |
| Wall Thickness | 3/16 | 4.8 mm |
| Minimum Bend Radius | 1/4 | 6.4 mm |
| Maximum Working pressure | 69 psi @ 73 °F | 4.8 bars @ 23 °C |
| Vacuum Rating of Mercury at | 29.9 @ 73 °F | 760 mm @ 23 °C |
| Roll Length | 50 ft. | 15 m |
