Description

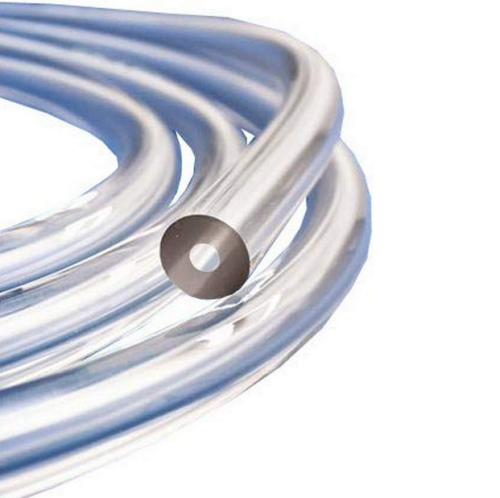

Tygon® S3™ E-3603 vacuum tubing delivers the same superior performance that the R-3603 tubing provided, but the formulation contains a non-DEHP plasticizer suitable for laboratory, food and beverage applications. It handles most inorganic chemicals found in the laboratory and can be used in a corrosive environment. It is both non-oxidizing and non-contaminating, and less permeable than rubber tubing. The glassy-smooth inner bore helps prevent buildup to facilitate cleaning. The coils are marked at 1-foot intervals for easy measuring.The extra-heavy walls of the vacuum tubing can withstand a full vacuum at room temperature (29.9" [759mm] of mercury at 73°F [23°C]) and up to 27" [686mm] of mercury at 140°F [60°C].The specifications for this tubing are:
| I.D. | 3/8" | 9.5 mm |
| O.D. | 7/8" | 22.2 mm |
| Wall Thickness | 1/4" | 6.4 mm |
| Minimum Bend Radius | 5/8" | 15.9 mm |
| Maximum Working pressure | 47 psi @ 73°F | 3.2 bars @ 23°C |
| Vacuum Rating of Mercury at | 29.9" @ 73°F | 760 mm @ 23°C |
| Roll Length | 50 Ft. | 15 m |
