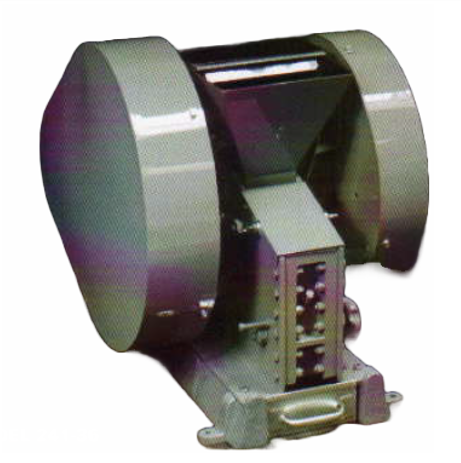

VD Chipmunk Jaw Crusher, 2 HP, 3 Phase, 220/380/440 V, Bico, 241-34

Bico® VD Chipmunk® Jaw Crusher, 2 HP, 3 Phase, 220/380/440 V, 241-34

Features:

• Low maintenance
• V-belt driven
• 4 alloy type jaws to choose from
• Rugged design absorbs shock and impact
• Exceptional crushing capacity with minimum power consumption by unique moveable jaw principle
• Upper end of jaw travels in circular path driven by eccentric shaft and lower end oscillates through short arc described by toggle
• Resultant jaw action is forward and downward motion relative to stationary jaw that crushes sample and forces its discharge
• Heavy bronze bearings are sealed against dust/dirt and lubricated by grease cups — no special greasing tools required
• Bearings may be taken up for wear, reversed on shaft for more wear, and after long service, easily replaced

• Cleaning is easily accomplished — stationary jaw is easily lifted out of frame to completely expose inner parts for thorough brushing
• Dropping cam-lock handle anchors jaw securely in position
• Discharge opening between jaw can be adjusted to control crushed particle size by turning hand wheel on side of crusher
• Adjusting mechanism consists of wedge blocks operated by screw; blocks transmit crushing force from jaw to frame relieving all strain on adjusting screw itself

Specifications:
