Description

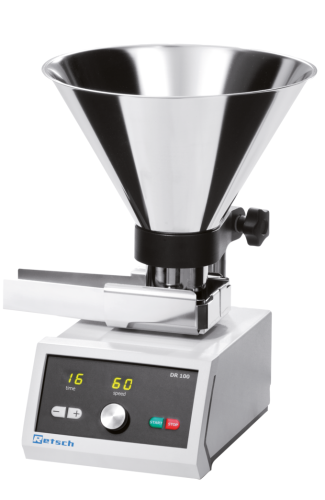

Feeder DR 100 The Vibratory Feeder DR 100 are used for the even, continuous feed and conveyance of pourable bulk materials and fine powders. The DR 100 charge Retsch mills and sample dividers, as well as balances, mixing and stirring operations, particle measuring devices, and they are suitable for filling, dosing, feeding and applying various materials. The capacity, adaptability and compact design make these devices highly versatile in use. Application Examples
- cement clinker
- chemicals
- coffee
- construction materials
- fertilizers
- fillers
- flours, grains
- metals powders, minerals
- nuts
- plastics
- sand, seeds, soils
- washing powder
- avoidance of overloading
- strong drive for even material feed
- infinitely adjustable volume flow
- material bed level can be variably adjusted
- optional control via interface
- digital time setting
- compact control and feed unit
- easy cleaning of push-fit feed chute
- maintenance-free design to CE standard
- 2-year warranty
- Material feed size* < 6 mm (40 mm chute)
- Volume flow 0 - 5 l/min, infinitely adjustable
- Time setting digital, 1 - 99 min / continuous operation
- Chute width 40 mm
- Chute length 210 mm
- Hopper Volume 2.8L (40 mm chute)
- W x H x D 260 x 420 x 280 mm
- Net weight ~ 10 kg
- Workplace related emission value LpAeq 36 dB(A)
