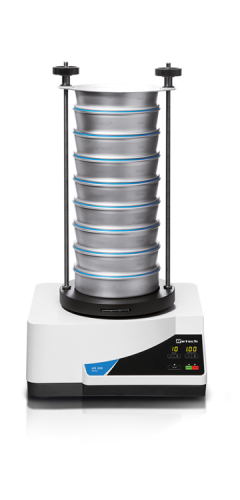

Retsch® Vibratory Sieve Shaker AS 200 Basic Model, 120 V, 1 Phase, 60 Hz (Order Clamping Devices, Test Sieves, and Pans Separately)This basic model Sieve Shaker provides an economical alternative without compromising the familiar Retsch® quality and reliability. This series of sieve shakers can be used in research & development, quality control of raw materials, interim and finished products, or production monitoring. Sharp fractions can be obtained even with a short sieving cycle.Features:
- New digitial display of performance and time
- Suitable for wet or dry sieving
- Excellent separation efficiency even with short sieving cycles
- Efficient electromagnetic drive
- Three-dimensional throwing motion ensures optimum use of the open sieve area—samples mover equally over the entire sieving area
- Sieve stack up to 510 mm height
- All process parameters can be freely adjusted—time and/or performance
- Select from "standard" or "comfort" clamping devices (purchase separately)
- Maintenance-free
- Easy operation with ergonomic design
Material Applications:
| Cement Clinker |
Chemicals |
Coffee |
Construction Materials |
Fertilizers |
Fillers |
| Flours |
Grains |
Metals Powders |
Minerals |
Nuts |
Plastics |
| Sand |
Seeds |
Soils |
Washing Powders |
and more |
|
Specifications:
| Applications |
Separation, Fractioning, Particle Size Determinination |
| Field of Application |
Agriculture, Biology, Chemistry/Plastics, Construction Materials, Engineering/Electronics, Environmental/Recycling, Food, Geology/Metallurgy, Glass/Ceramics, Medicine/Pharmaceuticals
|
| Feed Material |
Powders, Bulk Materials, Suspensions |
| Measuring Range * |
20 micrometers to 25 mm |
| Sieving Motion |
Throwing Motion with Angular Momentum |
|
Max. Batch / Feed Capacity
|
3 kg |
| Max Number of Fractions |
9 / 17 |
| Max. Mass of Sieve Stack |
4 kg |
| Amplitude |
Digital, 1 — 100 % (0 — 3 mm) |
| Controlled Amplitude |
No |
| Time Display |
Digital, 1 — 99 min |
| Suitable for Dry Sieving |
Yes |
| Suitable for Wet Sieving |
Yes |
| USB Interface |
No |
|
Including Test Certificate /Can be Calibrated
|
No |
| Suitable Sieve Diameters |
100 mm / 150 mm / 200 mm / 203 mm (8") |
| Max. Height of Sieve |
510 mm |
| Clamping Devices |
"Standard" or "Comfort" (Each for Wet and Dry Sieving) |
| Protection Code |
IP 54 / IP 20 |
| Electrical Supply Data |
120 V, 60 Hz (Other Voltages Available by Request) |
| Power Connection |
1-phase |
| Dimensions, W x H x D |
417 x 212 x 384 mm |
| Net Weight |
Approximately 35 kg |
| Standards |
CE |
* Depending on FeedMaterial and Instrument Configuration/Settings
