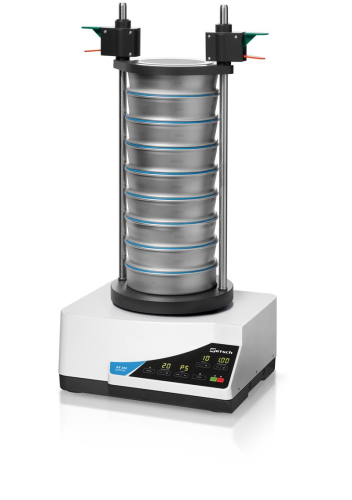

Retsch® Vibratory Sieve Shaker AS 200 Control Model, 120 V, 1 Phase, 60 Hz — Includes Test Report in Accordance with EN 10204 2.2 (Order Clamping Devices, Test Sieves, and Pans Separately)This series of sieve shakers can be used in research & development, quality control of raw materials, interim and finished products, or production monitoring. Sharp fractions can be obtained even with a short sieving cycle. The AS 200 Control Model provides all-digital controls, includes up to 99 sieving programs and a calibration certificate. This unit is indespensable to users who need operational convenience along with the precision necessary to comply with ISO 9001 guidelines.Features:
- New: provides up to 99 sieving programs
- New: low noise operation thanks to optimized control
- New: USB connection for use of EasySieve software
- Suitable for wet or dry sieving
- Excellent separation efficiency even with short sieving cycles
- Efficient electromagnetic drive
- Three-dimensional throwing motion ensures optimum use of the open sieve area—samples mover equally over the entire sieving area
- Setting of sieve acceleation "g" for comparable and reproducible sieving results worldwide
- Sieve stack up to 620 mm height
- All process parameters can be digitally adjusted—time, amplitude, or sieve acceleration, and interval
- Interval operation
- Evaluation software, EasySieve®, is available as an option for control of the shaker, easy evaluation, and documentation of results
- Fulfills all criteria for measuring equipment related to ISO 9001
- Calibration certificate
- Easy operation with ergonomic design
- Maintenance-free
Material Applications:
| Cement Clinker |
Chemicals |
Coffee |
Construction Materials |
Fertilizers |
Fillers |
| Flours |
Grains |
Metals Powders |
Minerals |
Nuts |
Plastics |
| Sand |
Seeds |
Soils |
Washing Powders |
and more |
|
Specifications:
| Applications |
Separation, Fractioning, Particle Size Determinination |
| Field of Application |
Agriculture, Biology, Chemistry/Plastics, Construction Materials, Engineering/Electronics, Environmental/Recycling, Food, Geology/Metallurgy, Glass/Ceramics, Medicine/Pharmaceuticals
|
| Feed Material |
Powders, Bulk Materials, Suspensions |
| Measuring Range * |
20 micrometers to 25 mm |
| Sieving Motion |
Throwing Motion with Angular Momentum |
|
Max. Batch / Feed Capacity
|
3 kg |
| Max Number of Fractions |
11 / 23 |
| Max. Mass of Sieve Stack |
6 kg |
| Amplitude |
Digital, 0.2 — 3 mm |
| Controlled Amplitude |
Yes |
| Sieve Acceleration |
1.0 — 15.1 g |
| Time Display |
Digital, 1 — 99 min |
| Interval operation |
1 — 99 s |
| Storable SOPs |
99 |
| Suitable for Dry Sieving |
Yes |
| Suitable for Wet Sieving |
Yes |
| USB Interface |
Yes |
|
Including Test Certificate /Can be Calibrated
|
Yes |
| Suitable Sieve Diameters |
100 mm / 150 mm / 200 mm / 203 mm (8") |
| Max. Height of Sieve |
620 mm
|
| Clamping Devices |
"Standard" or "Comfort" (Each for Wet and Dry Sieving) |
| Protection Code |
IP 54 / IP 20 |
| Electrical Supply Data |
100 — 240 V, 50 / 60 Hz |
| Power Connection |
1-phase |
| Dimensions, W x H x D |
417 x 212 x 384 mm |
| Net Weight |
Approximately 35 kg |
| Standards |
CE |
* Depending on FeedMaterial and Instrument Configuration/Settings
