Description

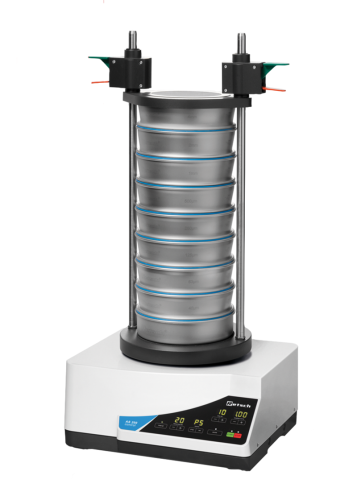

Retsch® Vibratory Sieve Shaker AS 200 Digit cA Model, 120 V, 1 Phase, 60 Hz (Order Clamping Devices, Test Sieves, and Pans Separately)
This series of sieve shakers can be used in research & development, quality control of raw materials, interim and finished products, or production monitoring. Sharp fractions can be obtained even with a short sieving cycle. When controlled amplitude is necessary in sampling, the AS 200 Digit cA model is recommended because it provides the ability to control the amplitude and a digital display of the vibration height and time and the interval of operation.Features:
- New controlled amplitude
- Suitable for wet or dry sieving
- Excellent separation efficiency even with short sieving cycles
- Efficient electromagnetic drive
- Three-dimensional throwing motion ensures optimum use of the open sieve area—samples mover equally over the entire sieving area
- Sieve stack up to 510 mm height
- All process parameters can be freely adjusted—time, amplitude, and interval
- Interval operation
- Digital display of vibration height and time
- Easy operation with ergonomic design
| Cement Clinker | Chemicals | Coffee | Construction Materials | Fertilizers | Fillers |
| Flours | Grains | Metals Powders | Minerals | Nuts | Plastics |
| Sand | Seeds | Soils | Washing Powders | and more |
| Applications | Separation, Fractioning, Particle Size Determinination |
| Field of Application | Agriculture, Biology, Chemistry/Plastics, Construction Materials, Engineering/Electronics, Environmental/Recycling, Food, Geology/Metallurgy, Glass/Ceramics, Medicine/Pharmaceuticals |
| Feed Material | Powders, Bulk Materials, Suspensions |
| Measuring Range * | 20 micrometers to 25 mm |
| Sieving Motion | Throwing Motion with Angular Momentum |
| Max. Batch / Feed Capacity | 3 kg |
| Max Number of Fractions | 9 / 17 |
| Max. Mass of Sieve Stack | 4 kg |
| Amplitude | Digital, 0.2 — 3 mm |
| Controlled Amplitude | Yes |
| Time Display | Digital, 1 — 99 min |
| Suitable for Dry Sieving | Yes |
| Suitable for Wet Sieving | Yes |
| USB Interface | No |
| Including Test Certificate /Can be Calibrated | No |
| Suitable Sieve Diameters | 100 mm / 150 mm / 200 mm / 203 mm (8") |
| Max. Height of Sieve | 510 mm |
| Clamping Devices | "Standard" or "Comfort" (Each for Wet and Dry Sieving) |
| Protection Code | IP 54 / IP 20 |
| Electrical Supply Data | 120 V, 60 Hz (Other Voltages Available by Request) |
| Power Connection | 1-phase |
| Dimensions, W x H x D | 417 x 212 x 384 mm |
| Net Weight | Approximately 35 kg |
| Standards | CE |
* Depending on FeedMaterial and Instrument Configuration/Settings
Specifications
| Manufacturer | Verder Scientific |
|---|---|
| Model No | 300310001 |
