Description

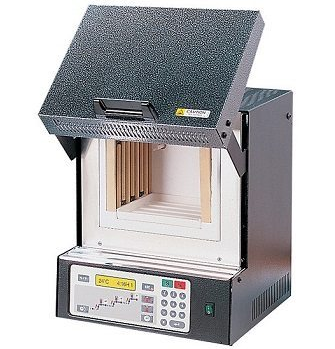

Vulcan® Digital/Programmable 3-Stage Benchtop Burnout Furnace 3-130 100-120V, 5355740002
Features:
- Each 3-stage digital programmable model has 2 standard muffle sizes
- 3-series controller
- 9 multistage programs
- Hold-temperature program
- Delay-start option, which allows program’s start time to be delayed for up to 7 days
- Unit is constructed with heavy-gauge steel cabinet and finished with durable, baked-enamel coating
- Vertical lift door directs heat away from operator and is standard for safety and space conservation
Specifications
| Range | Wide Range: 77 to 2012 degrees F (25 to 1100 degrees C) |
|---|---|
| Range | Programmable Heat Rate: 1 to 54 degrees F/minute (1 to 30 degrees C/minute) |
| Range | Programmable Hold Time: 0:00 to 99:59 hrs. |
| Power | 100-120V 12 A 1440 W 50-60 Hz |
| Accuracy | Uniformity: +/- 15 degrees F (+/- 8 degrees C) at steady state |
| Operating Environment | 41 to 104 degrees F (5 to 40 degrees C) Ambient |
| Other | Interior Dimensions: 4.6 in. (120 mm) H x 5.7 in. (140 mm) W x 5.2 in. (130 mm) D |
| Dimensions | Exterior: 20.0 in. (510 mm) H (total) x 13.8 in. (350 mm) H (door closed) x 11.5 in. (290 mm) W x 13.0 in. (330 mm) D |
| Weight | Furnace: 25 lbs. (11 kg)/Shipping: 35 lbs. (16 kg) |
| Manufacturer | Vulcan |
| Model No | 5355740002 |
| Warranty | 1 year limited |
