Description

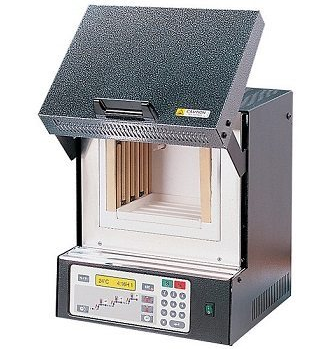

Vulcan® Digital/Programmable 3-Stage Benchtop Furnace 230 V, 3-550, 5355740003
Features:
- High performance hybrid muffle furnace
- Heavy gauge steel cabinet finished with a durable baked enamel coating
- Vertical lift door directs heat away from operator and is standard for safety and space conservation
- Longer life, more durable than fiber construction
- Faster heating and cooling than full firebrick
- Integrated door safety switch
- Durable stainless steel front panel
- Digital controller
- Three-stage digital controller (nine multi-stage programs, rate, hold time, delay start, alarm, °F/°C operation)
- Three-stage burnout furnaces are available in two standard muffle sizes and feature three-series controller
- Three-stage digital programmable models have nine multi-stage programs, hold temperature program, and delay start option which allows program's start time to be delayed for up to seven days
- Watts to Maintain 1832 °F (1000 °C) (Air Exchange setting at 0): 1050 W
Specifications
| Range | Wide Range: 77 to 2012 degrees F (25 to 1100 degrees C) |
|---|---|
| Range | Programmable Heat Rate: 1 to 54 degrees F/minute (1 to 30 degrees C/minute) |
| Range | Programmable Hold Time: 0:00 to 99:59 hrs. |
| Power | 200-240 V 10 A 2400 W 50-60 Hz |
| Accuracy | Uniformity: +/- 15 degrees F (+/- 8 degrees C) at steady state |
| Operating Environment | 41 to 104 degrees F (5 to 40 degrees C) Ambient |
| Other | Interior Dimensions: 7 in. (180 mm) H x 9 in. (230 mm) W x 9 in. (230 mm) D |
| Dimensions | Exterior: 25.0 in. (635 mm) H (total) x 16 in. (410 mm) H (door closed) x 15.8 in. (400 mm) W x 17.0 in. (430 mm) D |
| Weight | Furnace: 45 lbs. (20 kg)/Shipping: 60 lbs. (27 kg) |
| Manufacturer | Vulcan |
| Model No | 5355740003 |
| Warranty | 1 year limited |
