Description

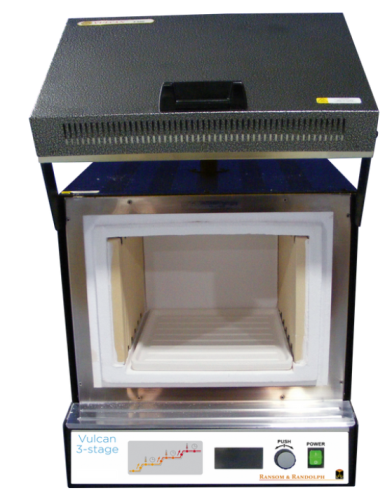

Vulcan® Single 3-Stage Burnout Muffle Furnace, 120 V, 535574004
Features:
- High Performance Hybrid Muffle Technology for Faster Heating and Cooling than Full Firebrick Exclusive to Vulcan® Benchtop Furnaces
- Vulcan three-stage burnout furnaces are available in two standard muffle sizes
- Feature three-series controller
- Three-stage digital programmable models have nine multi-stage programs, hold temperature program, and delay start option which allows program's start time to be delayed for up to seven days
- Longer life, more durable than fiber construction
- Integrated door safety switch
- Durable stainless steel front panel
- Vertical lift door directs heat away from the operator and is standard for safety and space conservation
Specifications
| Range | Temperature:77 to 2012 degrees F (25 to 1100 degreesC) |
|---|---|
| Range | Programmable Heat Rate: 1 to 54 degrees F/min (1 to 30 degrees C/min) |
| Capacity | 550 cu. in. |
| Material | Enamel coated heavy guage steel cabinet |
| Power | 100-120 V, 50/60 Hz, 14.7-16.0 A, 1470-1920 W |
| Accuracy | +/- 15 degrees F (+/- 8 degrees C) at steady state |
| Compliant/Standard | CB Certification |
| Operating Environment | 41 to 104 degrees F (5 to 40 degrees C) |
| Other | Height with Door Up: 25.0 in. (635 mm) |
| Other | Interior H x W x D: 7 in. x 9 in. x 9 in. (180 mm x 230 mm x 230 mm) |
| Dimensions | Exterior H x W x D: 16 x 15.8 x 17 in (410 x 400 x 430 mm) |
| Weight | 45 lb (20 kg) Shipping: 60 lbs (27 kg) |
| Manufacturer | Vulcan |
| Model No | 5355740004 |
| Warranty | 1 year |
