Description

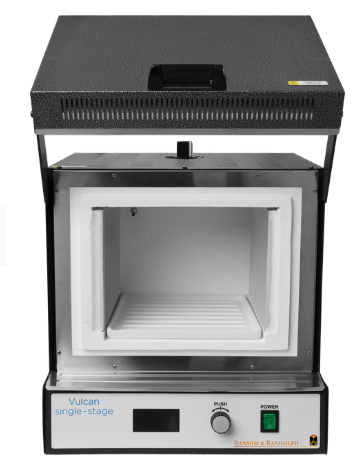

Vulcan® Single Stage Burnout Furnace, S-550 Series, 200-240 V, 5355730001
Features:
- High performance hybrid muffle furnace
- Heavy gauge steel cabinet finished with a durable baked enamel coating
- Vertical lift door directs heat away from operator and is standard for safety and space conservation
- Longer life, more durable than fiber construction
- Faster heating and cooling than full firebrick
- Integrated door safety switch
- Durable stainless steel front panel
- Digital controller
- Single-Stage: digital temperature controller (programmable temperature, rate, hold time, alarm, °F/°C operation)
- Single setpoint digital controller allows operator to control rate of temperature climb, and monitor progress of program on an easy-to-read, accurate digital display
- Adjust heating rate of furnace to meet requirements of wide range of investments with this easy-to-program option
- Watts to Maintain 1832 °F (1000 °C) (Air Exchange setting at 0): 1050 W
Specifications
| Range | Temperature: 77 to 2012 degrees F (25 to 1100 degrees C) |
|---|---|
| Range | Programmable Heat Rate: 1 to 54 degrees F/minute (1 to 30 degrees C/minute) |
| Range | Programmable Hold Time: 0:00 to 60:00 hrs. |
| Power | 200-240 V 7.7-9.2 A 1540-2215 W |
| Accuracy | Uniformity: +/- 15 degrees F (+/- 8 degrees C) at steady state |
| Operating Environment | 41 to 104 degrees F (5 to 40 degrees C) Ambient |
| Other | Interior Dimensions: 7 in. (180 mm) H x 9 in. (230 mm) W x 9 in. (230 mm) D |
| Dimensions | Exterior: 25.0 in. (635 mm) H (total) x 16 in. (410 mm) H (door closed) x 15.8 in. (400 mm) W x 17.0 in. (430 mm) D |
| Weight | Furnace: 45 lbs. (20 kg) / Shipping: 60 lbs. (27 kg) |
| Manufacturer | Vulcan |
| Model No | 5355730001 |
| Warranty | 1 year limited |
