Description

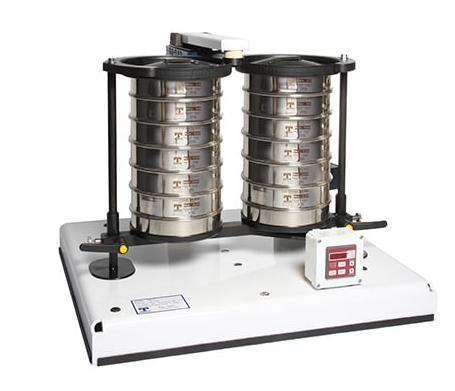

W. S. TYLER® RO-TAP® II RX-94 Sieve Shaker, 110 V/1 ph/60 Hz, RX-94
Features:
- Industry standard in test sieve shakers
- Unique two-dimensional operation - a horizontal, circular motion and a vertical, tapping motion - allows material particles to stratify and seek critical openings in the test media resulting in the most accurate and consistent particle analysis testing
- 99 minute digital timer/clock
- Serialized for complete traceability
- Designed for heavy duty use and requires minimal maintenance
- The RX-94 model is recommended for testing with 2 stacks full height 8 diameter test sieves
- One sample can be tested on a series of six sieves of different openings with one operation of the RO-TAP®
- Full height brass sieves with stainless steel cloth are normally recommended but brass sieves with brass cloth are also available; half height sieves may be special ordered
- Overall dimensions 30 x 27 x 26 in. / 75 x 68 x 56 cm
- Shipping weight: 242 lbs / 110 kg
- 150 taps/minute; 5 lb, 6 oz hammer weight
Additional Models
| Catalog Number | Model/Volts/Phase/Hertz |
|
91-9184-01
|
RO-TAP® RX-29 - 110/1/60
|
|
91-9184-02
|
RO-TAP® RX-29 - 230/1/50
|
|
91-9184-03
|
RO-TAP® RX-29 - 220/1/60
|
|
91-9184-12
|
RO-TAP® RX-30 - 110/1/60
|
|
91-9184-13
|
RO-TAP® RX-30 - 230/1/50
|
|
91-9184-14
|
RO-TAP® RX-30 - 220/1/60
|
|
91-9189-01
|
RO-TAP® II RX-94 - 110/1/60
|
|
91-9189-02
|
RO-TAP® II RX-94 - 220/1/60
|
W. S. TYLER® is a trademark of Haver Tyler Corporation.
RO-TAP® is the registered trademark of Haver Tyler Corporation.
Specifications
| Range | 2 in. down through 635 mesh (20 micron) |
|---|---|
| Capacity | Full height - 2 stacks of 6 sieves, Half height - 2 stacks of 13 sieves |
| Power | 110 V / 60 Hz |
| Other | 8 in. sieves |
| Other | 278 +/-10 oscillations/minute with 1 in x 0.75 in. displacement |
| Dimensions | 30 x 27 x 26 in. / 75 x 68 x 56 cm |
| Weight | 220 lbs / 100 kg |
| Manufacturer | W.S. Tyler - Ro-Tap |
| Model No | RX-94 |
