Description

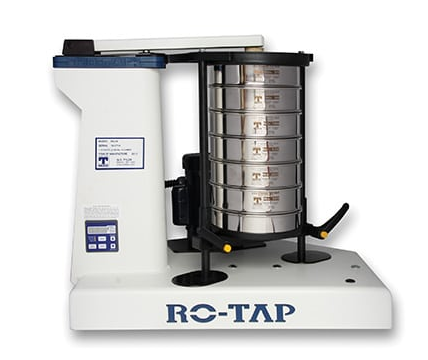

W. S. Tyler® RO-TAP® Sieve Shaker, 150 taps/minute and 278 oscillations/minute, W.S. Tyler, RX-29
Features:
- Industry standard in test sieve shakers
- Unique two-dimensional operation - a horizontal, circular motion and a vertical, tapping motion - allows material particles to stratify and seek critical openings in the test media resulting in the most accurate and consistent particle analysis testing
- 99 minute digital timer/clock
- Serialized for complete traceability
- Designed for heavy duty use and requires minimal maintenance
- The RX-29 model is recommended for testing with full height 8 diameter test sieves
- One sample can be tested on a series of six sieves of different openings with one operation of the RO-TAP®
- Full height brass sieves with stainless steel cloth are normally recommended but brass sieves with brass cloth are also available; half height sieves may be special ordered
Additional Models
| Catalog Number | Model/Volts/Phase/Hertz |
91-9184-01 |
RO-TAP® RX-29 - 110/1/60 |
91-9184-02 |
RO-TAP® RX-29 - 230/1/50 |
91-9184-03 |
RO-TAP® RX-29 - 220/1/60 |
91-9184-12 |
RO-TAP® RX-30 - 110/1/60 |
91-9184-13 |
RO-TAP® RX-30 - 230/1/50 |
91-9184-14 |
RO-TAP® RX-30 - 220/1/60 |
91-9189-01 |
RO-TAP® II RX-94 - 110/1/60 |
91-9189-02 |
RO-TAP® II RX-94 - 220/1/60 |
W. S. TYLER® is a trademark of Haver Tyler Corporation.
RO-TAP® is the registered trademark of Haver Tyler Corporation.
Specifications
| Range | Particle size: 4 in. down through 635 mesh (20 micron) |
|---|---|
| Range | Speed: 150 taps/minute +/- 10, 278 oscillations/minute +/- 10 |
| Range | Hammer weight: 5 lb, 6 oz |
| Range | Timer: 99-minute digital timer/clock, tolerance 0.1 sec |
| Capacity | Full Height - 6 Sieves or Half Height - 13 Sieves |
| Power | 115 V / 60 Hz / 1 Phase |
| Other | Sieve diameter: 8 in. / 200 mm |
| Other | 1 in x 0.75 in. displacement |
| Dimensions | Width x depth x height: 28 x 21 x 25 in. / 71 x 54 x 64 cm |
| Weight | 180 lbs / 82 kg, Shipping weight 190 lbs |
| Manufacturer | W.S. Tyler Ro-Tap |
| Model No | RX-29 |
