Description

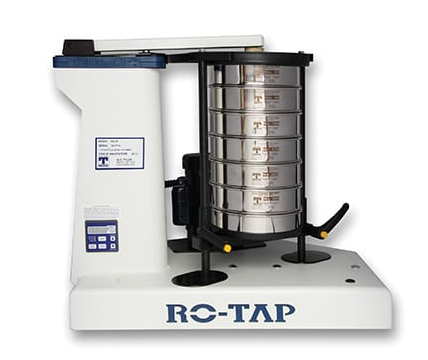

W. S. TYLER® RO-TAP® RX-30 Sieve Shaker, 230 V/1 Ph/50 Hz, RX-30-10
Features:
- Industry standard in test sieve shakers
- Unique two-dimensional operation - a horizontal, circular motion and a vertical, tapping motion - allows material particles to stratify and seek critical openings in the test media resulting in the most accurate and consistent particle analysis testing
- 99 minute digital timer/clock
- Serialized for complete traceability
- Designed for heavy duty use and requires minimal maintenance
- The RX-30 model is recommended for testing with full height 12 in. diameter test sieves
- One sample can be tested on a series of six sieves of different openings with one operation of the RO-TAP®
- Full height brass sieves with stainless steel cloth are normally recommended but brass sieves with brass cloth are also available; half height sieves may be special ordered
- Overall dimensions 28 W x 21 D x 25 H
- Shipping weight: 190 lbs
- 150 taps/minute; 5 lb, 6 oz hammer weight
Additional Models
| Catalog Number | Model/Volts/Phase/Hertz |
|
91-9184-01
|
RO-TAP® RX-29 - 110/1/60
|
|
91-9184-02
|
RO-TAP® RX-29 - 230/1/50
|
|
91-9184-03
|
RO-TAP® RX-29 - 220/1/60
|
|
91-9184-12
|
RO-TAP® RX-30 - 110/1/60
|
|
91-9184-13
|
RO-TAP® RX-30 - 230/1/50
|
|
91-9184-14
|
RO-TAP® RX-30 - 220/1/60
|
|
91-9189-01
|
RO-TAP® II RX-94 - 110/1/60
|
|
91-9189-02
|
RO-TAP® II RX-94 - 220/1/60
|
W. S. TYLER® is a trademark of Haver Tyler Corporation.
RO-TAP® is the registered trademark of Haver Tyler Corporation.
Specifications
| Range | 5 in. down through 500 mesh (25 micron) |
|---|---|
| Capacity | Full Height - 4 Sieves, Intermediate Height - 6 Sieves, Half Height - 8 Sieves |
| Power | 230 V / 50 Hz |
| Other | 12 in. sieves |
| Other | 278 +/-10 oscillations/minute with 1 in x 0.75 in. displacement |
| Dimensions | 28 x 21 x 25 in. / 71 x 54 x 64 cm |
| Weight | 180 lbs / 82 kg |
| Model No | RX-30-10 |
