Description

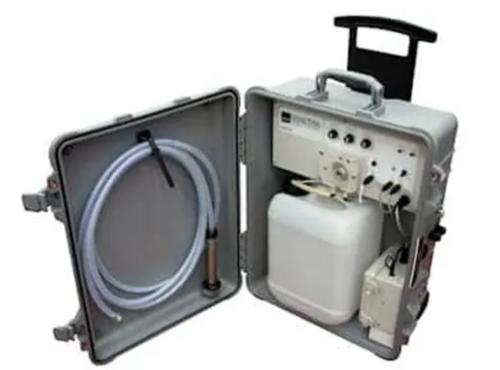

YSI® Water Sampler, Composite/Discrete, Portable, 2.5 gal Polyethylene Sample Bottle, WS705/CU1000
Features:
- Ideal for storm water, water, wastewater, industrial and environmental sampling
- CE Certified
- Quick disconnect pickup hose conveniently stored inside enclosure for easy transport
- Simple to operate - no programming required
- Heavy duty wheels and retractable handle built in
- Rugged construction for harsh environments
- Can take timed or flow proportional samples
- Peristaltic pump prevents sample contamination
- Automatic backflush clears pickup strainer and hose
- Enclosed battery compartment and smart battery charger to improve battery life
- Refrigerated / cooler sampler options available
- Easiest and most reliable method for collecting water quality samples
Specifications
| Range | Pump flow rate: 1000 mL per minute at a 4 foot head |
|---|---|
| Range | Maximum lift: approximately 20 ft / 6 m |
| Capacity | 2.5 gal |
| Material | Encloser: UV protected PVC, Sample Tubing: PVC, Pump Tubing: Norprene, Polyethylene Sample bottle |
| Power | AH rechargeable battery, 10 Amp Slow-Blo fuse |
| Operating Environment | Temperature: 32 to 158 degrees F /0 to 70 degrees C |
| Connectivity | External input: 250 mS minimum pulse width Switch closure or 4-24 VDC |
| Connectivity | Pulse output: 5VDC one-second pulse 1000 ohm output impedance |
| Dimensions | H x W x D: 22 x 18 x 10 inch / 56 x 45.7 x 25.4 cm |
| Weight | 26 lbs / 11.7 kg |
| Manufacturer | YSI |
| Model No | WS705/CU1000 |
