Description

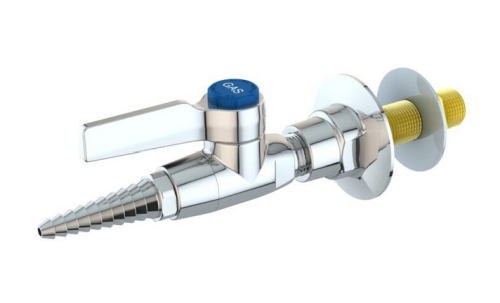

Prime Industries® Water Saver Gas Cock Ball Valve, Panel Mounted, L4200-158WS-GAS
Features:
- For installation on vertical or horizontal surfaces (such as pipe chases and service carriers) where there is access behind surface during installation
- Threaded mounting shank is inserted through hole in surface and secured with locknut and washer
- Valve body is forged brass
- Operated by quarter-turn open?/?close with chrome plated brass ball and molded PTFE seals
- Equipped with forged brass lever handle with color-coded index disc
- Inlet, furnished with 3/8 in. IPS mounting shank (assembled), locknut and washer 3/8 in. NPT male inlet
- Outlet 3/8 in. NPT female outlet with removable ten serration hose end
- Fixture is fully assembled and factory tested prior to shipment
Specifications
| Material | Forged brass body and handle, chrome plated brass ball valve with PTFE seals |
|---|---|
| Connectivity | Inlet: 3/8 in. NPT male inlet |
| Connectivity | Outlet: 3/8 in NPT female outlet with removable ten-seration hose end |
| Dimensions | Extends 5-1/8 in. from panel face, 2-1/8 in. mounting shank |
| Manufacturer | Prime Industries |
| Model No | L4200-158WS-GAS |
