Description

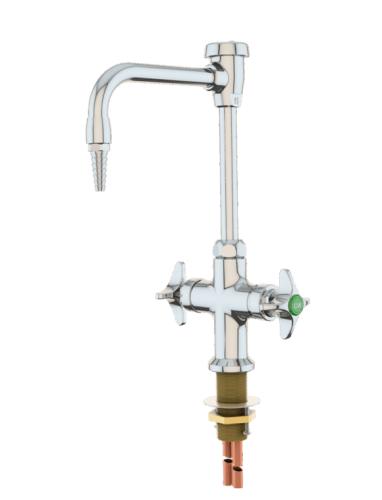

Prime Industries® WaterSaver ®Mixing Faucet, Hot/Cold, Deck Mounted, Vacuum Breaker, L414VB
Features:
- Deck mounted mixing faucet with vacuum breaker for hot and cold water
- Forged brass body
- WaterSaver® self-contained compression valve units with replaceable stainless steel seats
- Forged brass four-arm handles with color-coded index discs
- 6 in. rigid / swing gooseneck
- Integral vacuum breaker to prevent backflow — breaker has replaceable seat and ultra-light float cup to resist spilling at low flow
- Inlet: 1-3/16 in. male shank with 2 x 3/8 in. outside diameter flexible copper tubes for hot and cold — furnished complete with locknut and washer
- Outlet: 3/8 in. NPS female outlet with removable anti-splash serration hose end
- Faucet is fully assembled and factory tested prior to shipment for quality assurance
Specifications
| Material | Forged brass body and handles |
|---|---|
| Connectivity | Inlet: 1-3/16 in. male shank with 2 x 3/8 in. outside diameter flexible copper tubes for hot and cold |
| Connectivity | Outlet: 3/8 in. NPS female outlet with removable anti-splash serration hose end |
| Dimensions | 13 -1/2 in. height above deck x 6 in. goose neck extension |
| Manufacturer | Prime Industries WaterSaver |
| Model No | L414VB |
