Description

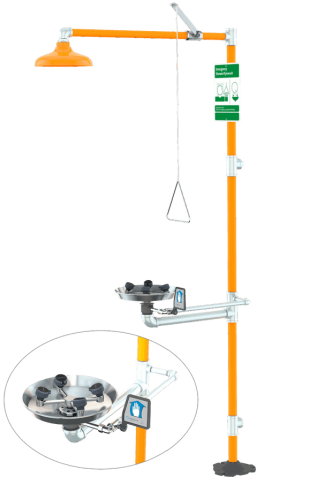

Prime Industries® WaterSaver® Safety Station, Barrier-Free with Eye Wash, SSBF909
Features:
- Barrier-Free combination WideArea™ eye/face wash and shower safety station
- Shower head and pull rod are extended for improved access — bowl is lowered and extended to permit access by wheelchair user — profile of unit is 'flattened' to comply with maximum height and knee clearance requirements
- Unit complies with ADA requirements for accessibility by handicapped persons (maximum height and reach, minimum knee clearance and distance from obstructions)
- Shower Head: 10 in. diameter orange ABS plastic (SSBF909) or stainless steel (SSBF909SSH), with 20 GPM flow control
- Shower Valve: 1 in. IPS chrome plated brass stay-open ball valve — US-made with chrome plated brass ball and PTFE seals — furnished with stainless steel actuating arm and 47-1/2 in. stainless steel pull rod
- Spray Head Assembly: Four GS-Plus™ spray heads — each head has 'flip-top' dust cover, internal flow control and filter to remove impurities from water flow
- Eye/Face Wash Bowl: 11-1/8 in. diameter stainless steel
- Eye/Face Wash Valve: 1/2 in. IPS chrome plated brass stay-open ball valve — US-made with chrome plated brass ball and PTFE seals
- Pipe and Fittings: Schedule 40 galvanized steel — furnished with orange polyethylene pipe covers for high visibility and corrosion resistance
- Supply: 1-1/4 in. NPT female top or side inlet
- Waste: 1-1/4 in. NPT female outlet which can be positioned at either 9-1/4 in. or 19-5/8 in. above finished floor by reversing lower pipe nipples
- Sign: ANSI-compliant identification sign
- Quality Assurance: Valve and spray head assemblies are factory assembled and water tested prior to shipment
Specifications
| Material | ABS plastic shower head, stainless steel eye wash |
|---|---|
| Compliant/Standard | ADA, ANSI |
| Connectivity | 1-1/4 in. supply and drain conections |
| Manufacturer | Prime Industries WaterSaver |
| Model No | SSBF909 |
