Description

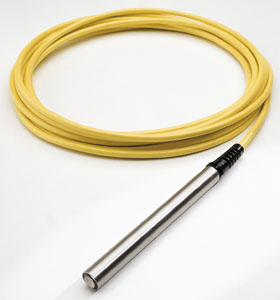

Global Water® WL400 Water Level Sensor, 50 ft. Cable, 0 to 30 ft. Sensor Range, AIC050Features:
- High accuracy and reliability
- Pressure transducer and cable completely submersible
- Easy installation due to compact, rugged design
- Low maintenance requirements
- Compatible with most monitoring equipment — adaptable to dataloggers, telemetry, displays, etc.
- 4-20 mA output — signal can run up to 3,000 ft. from the sensor to the logging device
- Vented cable provides automatic barometric compensation
- Wet-wet water level sensor eliminates vent tube concerns
- Dynamic temperature compensation system enables high accuracy measurements over a wide temperature range
- Submersible solid-state pressure transducer is encapsulated in a 13/16 in. stainless steel housing and is not affected by foam, wind, or rain
- Unique, highly flexible silicon diaphragm to interface between water and sensing element protects electronics from moisture and privdes exceptional linearity and very low hysteresis which is common is sensors with metal foil diaphragms
- Monitors levels in groundwater wells, rivers, streams, tanks, lift stations, and open channels — even in severe environments
- CE certified
- Multiple level ranges from 3 ft. maximum to 500 ft. maximum are available with standard or custom length cabling (call for information)
| Sensor Element | |
| Sensor Type | Silicone Diaphragm, Wet/Wet Transducer |
| Pressure Range Available | 0 to 3, 0 to 15, 0 to 30, 0 to 60, 0 to 120,0 to 250, 0 to 500 ft. |
| Linearity and Hysteresis | ± 0.1% of full scale |
| Accuracy | ± 0.1% of full scale at constant temperature,± 0.2% over 35 ° to 70 °F (1.37 ° to 21.1 °C) |
| Overpressure | Not to exceed 2 x full scale range |
| Resolution | Infinitesimal (analog) |
| Outputs | 4-20 mA or 0.5 to 2.5 VDC across 125 ohms |
| Supply Voltage | 8 to 36 VDC |
| Current Draw | Same as sensor output |
| Warm Up Time | 3 seconds recommended |
| Compensation | Dynamic temperature compensation 30 ° to 75 °F(-1 ° to 21.1 °C);Automatic barometric pressure compensation |
| Weight | 1/2 lb. (227 g) |
| Housing | |
| Material | 304L stainless steel, stainless steel microscreen(hundreds of holes to prevent fouling), electronicsfully encapsulated in marine grade epoxy, guaran-teed not to leak |
| Size | Up to 13/16 in. diameter x 5-1/2 in. long (2 cm diameter x 14 cm long); small enough for a 1 in. (2.54 cm) well; Titanium option has 1 in. (2.54 cm) diameter |
| Vented Cable | |
| Conductors | 4 each 22 AWG |
| Material | Marine grade polyether jacket, polyethylene vent tube, full foil shield |
| Outer Diameter | 0.306 in. (0.78 cm) |
| Temperature Range | - 22 ° to 185 °F (- 30 ° to 85 °C) |
| Weight | 0.7 oz./ft. (~65 g/m) |
| Length | Standard 25 ft. (7.62 m);Up to 500 ft. (152.4 m) from factory |
Specifications
| Manufacturer | Global Water |
|---|---|
| Model No | AIC050 |
