Description

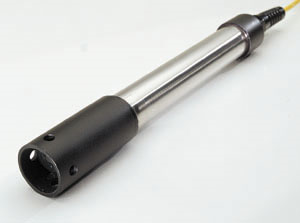

Global Water® WQ201 pH Sensor with 50 ft. Cable, Customized, DB0000Features:
- Designed for remote water quality measurement
- Electronics fully encapsulated in marine grade epoxy within stainless steel housing for rugged, reliability
- 4-20 mA output with three wire configuration
- Marine grade cable with strain relief — 25 ft. standard length with customizable lengths to 500 ft. available
- Replaceable pH sensor elements and removable shields for easy maintenance
- Works with GL500 Datalogger 92-1623-17 or can communicate with other data collection systems
- Online models available
- Customized length orders cannot not be canceled or returned; measurement specifications must be made carefully
| Output | 4-20 mA |
| Range | 0 to 14 pH units |
| Accuracy | ± 2% Full Scale |
| Maximum Pressure | 40 psi |
| Operating Voltage | 10-30 VDC |
| Current Draw | 5.5 mA plus sensor output |
| Warm Up Time | 3 seconds minimum |
| Operating Temperature | 23 to 131 °F (- 5 to 55 °C) |
| Size of Probe | Standard: 1-1/4"" diameter x 10"" long (3.2 cm diameter x 25.4 cm long)Online: 2"" diameter x 12"" long (5 cm diameter x 30.5 cm long) |
| Weight | Standard & online: 1 lb. (454 g) |
Specifications
| Manufacturer | Global Water |
|---|---|
| Model No | DB0000 (99GWI) |
